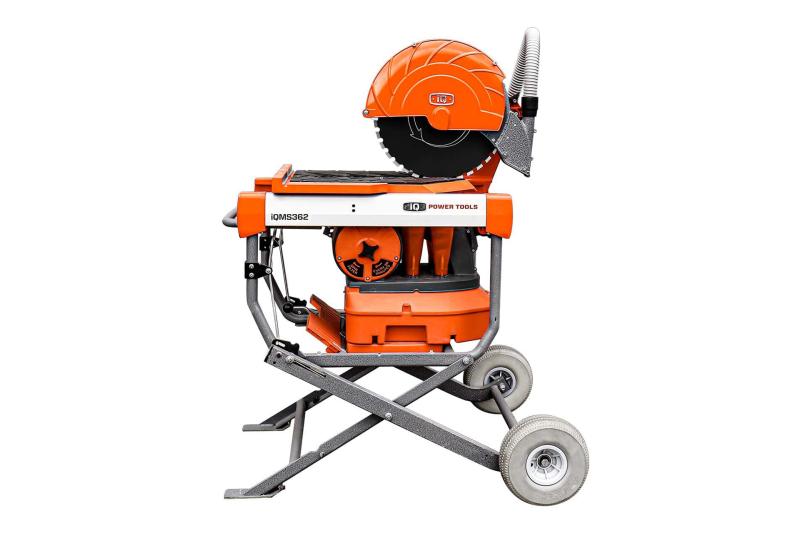

Dust Control Masonry Saw 362i 16.5" Blade, IQMS362

Overview

The iQMS362 motor package, Q-Drive™ blade and integrated dust collection system are specifically engineered to overcome the common limitations of most masonry saws. Unmatched Cutting Speed and Performance The proprietary Q-Drive™ blade incorporates the latest in diamond tool technology, with a diamond layout in the matrix, spacing and segments designed to reduce turbulence and dust. The Q-Drive™ cuts 40% faster than any other blade, including masonry materials in a wide range of shapes, sizes, weights, and densities; from soft, manufactured stone to dense pavers and granite. This blade can cut through a 60mm x 4” paver in just three seconds.

Technical Information

Cut brick, pavers, stone and veneer with unmatched precision16.5” blade allows for a 5.5” depth and a full 24” length of cutCuts up to 40% faster than any other masonry saw in its classHigh-flotation tires allow one person to move over rough jobsite terrainIntegrated stand with a gas-shock powered lifting/lowering mechanismOperates on standard 120v and 20 ampsIntegrated dust collection captures up to 99.5% of hazardous silica dustMeets the 2017 OSHA silica standardCut dry while protecting the health and safety of your workforceDust containment tub holds 45 lbs of dust

Model	iQMS362
Voltage	120V
Total System Amperage	20A
Saw Motor Amperage	15A
Vac MotorAmperage	5A
Saw Weight	150 lbs (68kg)
Blade Size	16.5” Q- Drive Blade
Filter Type	iQ Dura Bond Cartridge
Cutting Depth	5.5" H x 24" L
Dust Capacity	40 lbs (18kg)
Length	43" (109 cm)
Width	32" (81 cm)
Height	40" (102 cm)
Recommended Extension Cord	25 ft/12 ga or 50 ft/10 ga
Recommended Generator	4500 Continuous W and above
