Durham - S23
Get a precise product and shipping estimate, review delivery options, and complete your order in just a few clicks.
Plan with Precision Using the Brick it® Configurator
Whether you're an owner, architect, or contractor, the Brick it® Configurator helps you plan smarter, reduce waste, and purchase your Durham - S23 — along with all required installation components — with total confidence.
Why rely on rough estimates or spreadsheets? Brick it’s powerful tool delivers the most accurate material calculations in the industry, saving you time and ensuring every order is spot-on — all in just a few clicks.
Durham - S23
Order Durham - S23 by box.
Ideal for smaller-scale needs and repeat orders, this option offers a quick and convenient way to purchase without the need for full configuration. Returning customers value the simplicity and speed of buying by the box when exact quantities are already known.
For full project planning and precise material calculations, we recommend using our Order Configurator — the most reliable way to ensure accuracy across all components of your installation.
Durham - S23

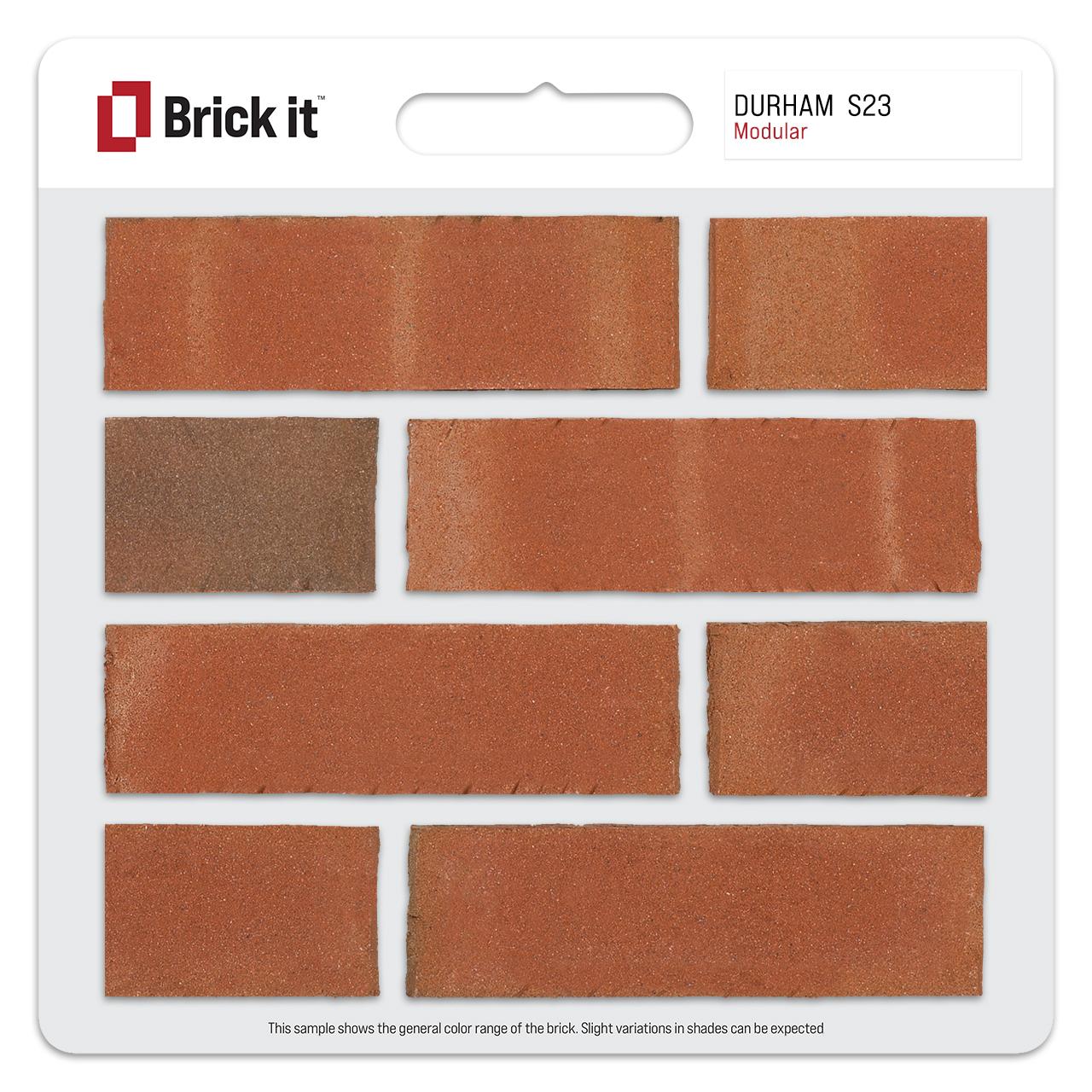

Order a sample board of Durham - S23 thin brick to see its texture, color, and character firsthand.
We recommend ordering one before your final selection. Feel the surface and see the brick in your own light.
Sample boards use real brick taken at random. They show general character only; natural variation in color and texture is expected.
Make your final selection at this stage. For a closer look, request a lot-specific sample or order brick for a mockup during design, not after delivery.
Mortar Colors
Technical Information

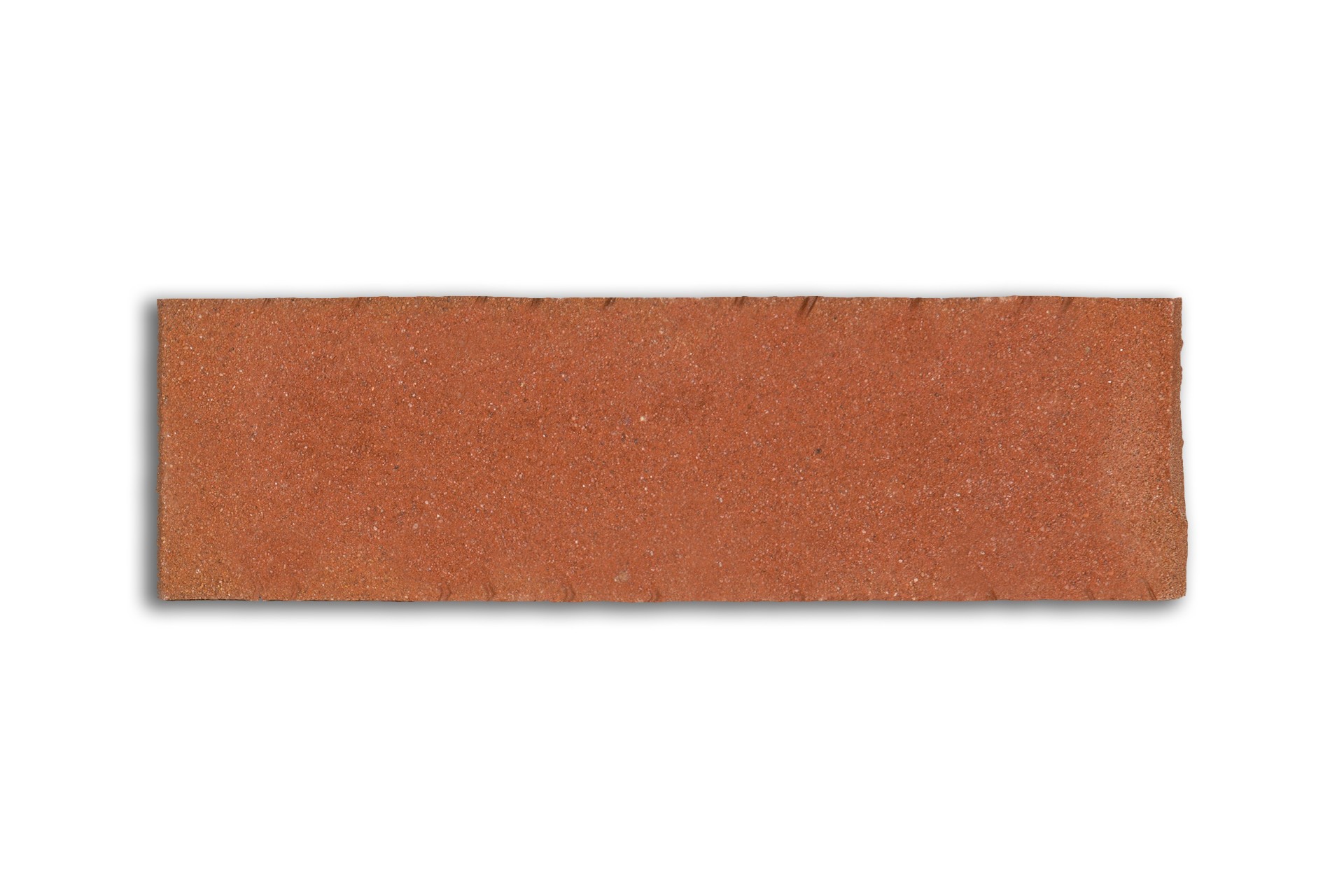

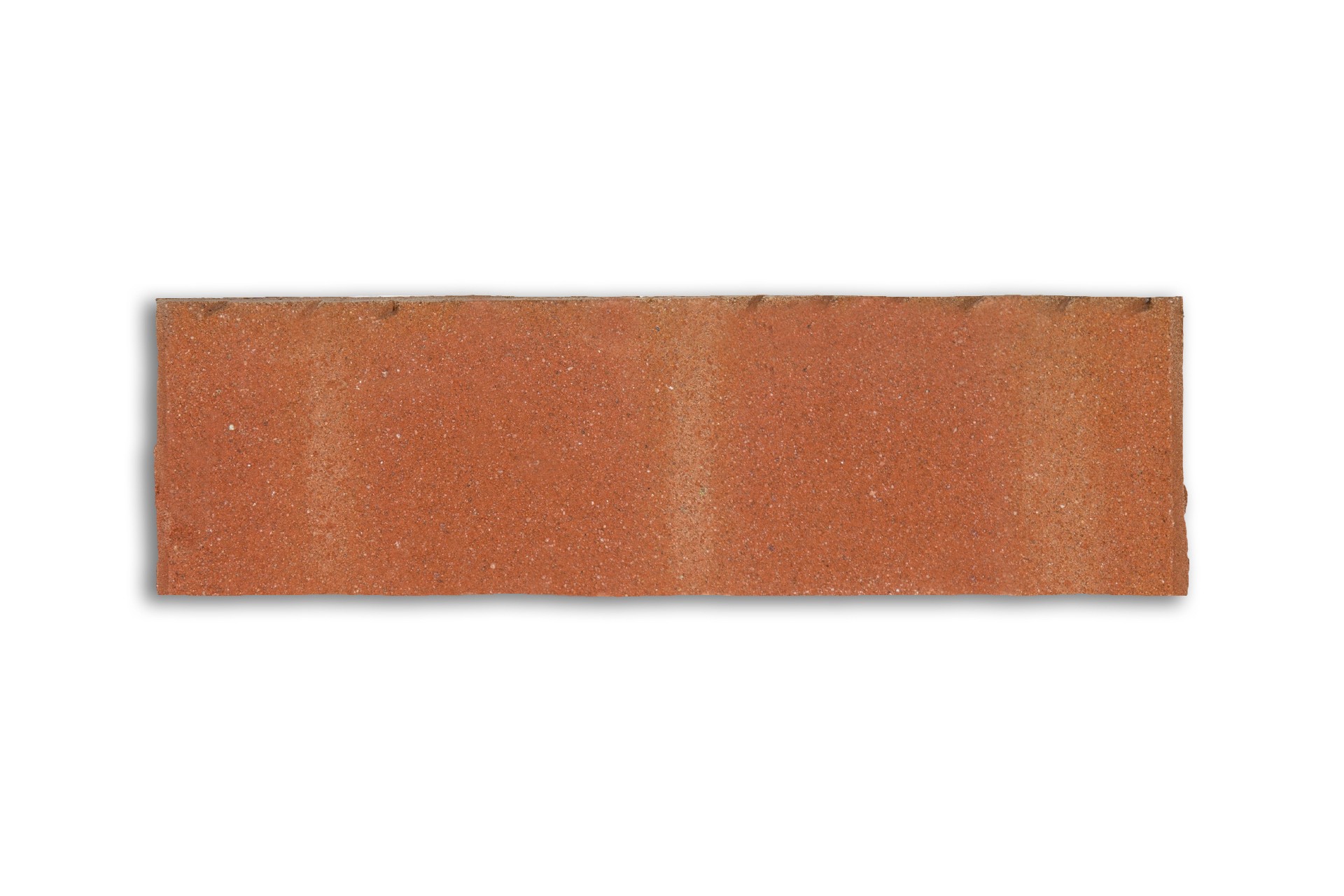

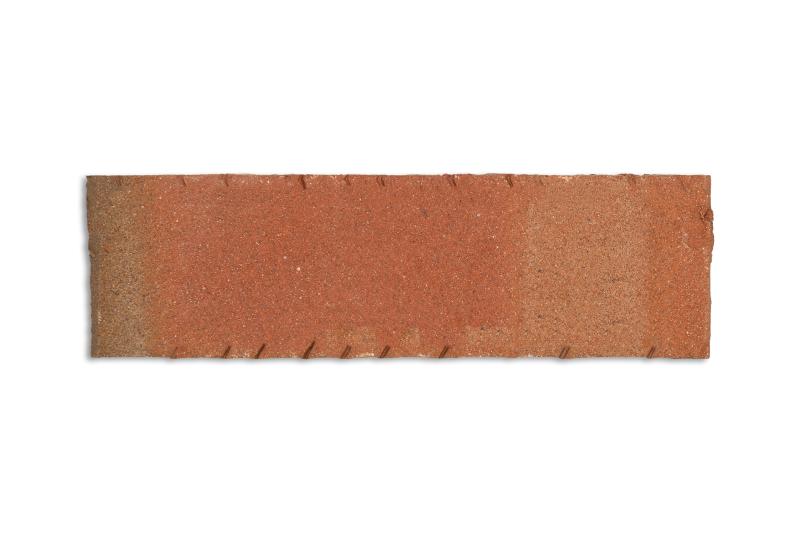

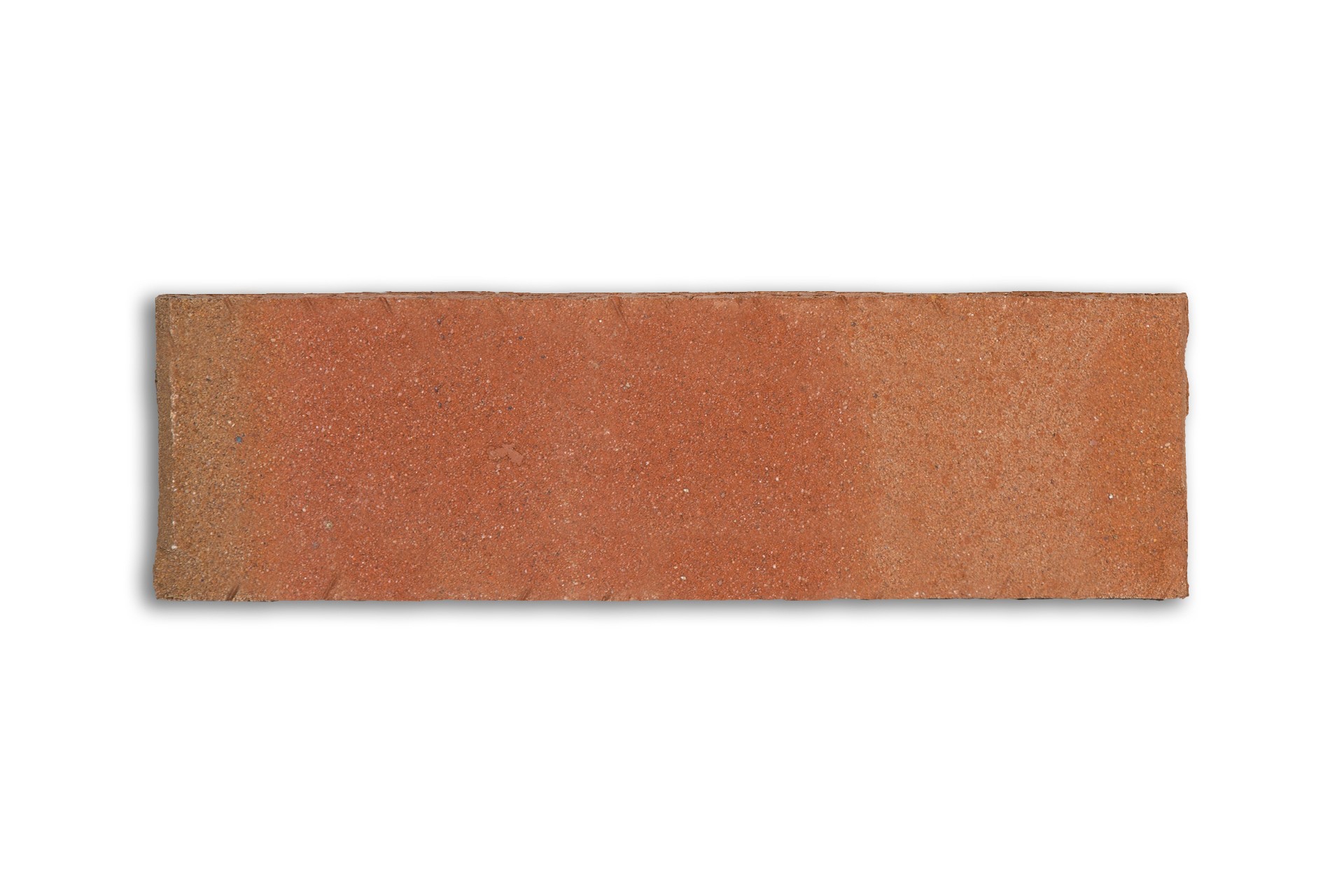

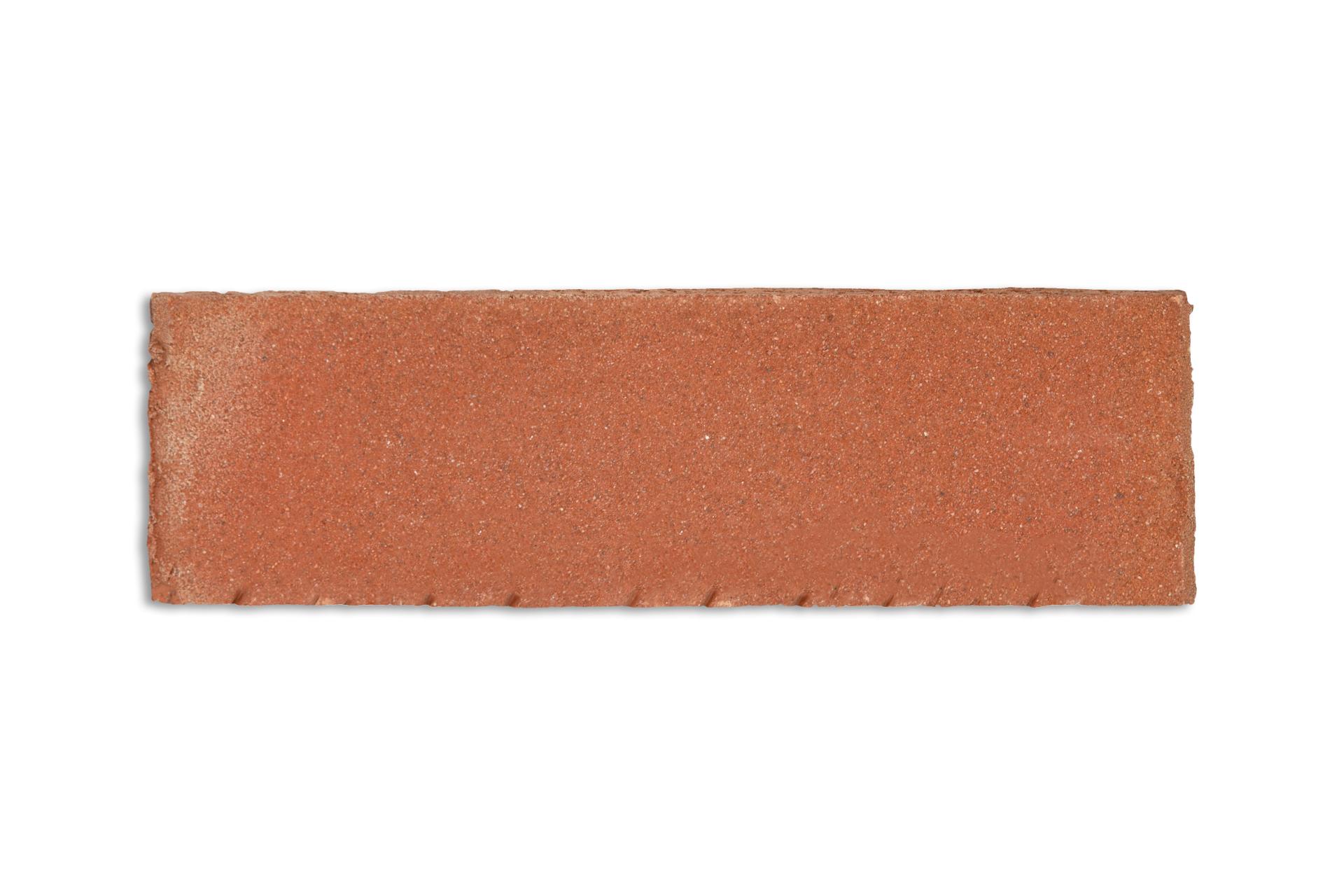

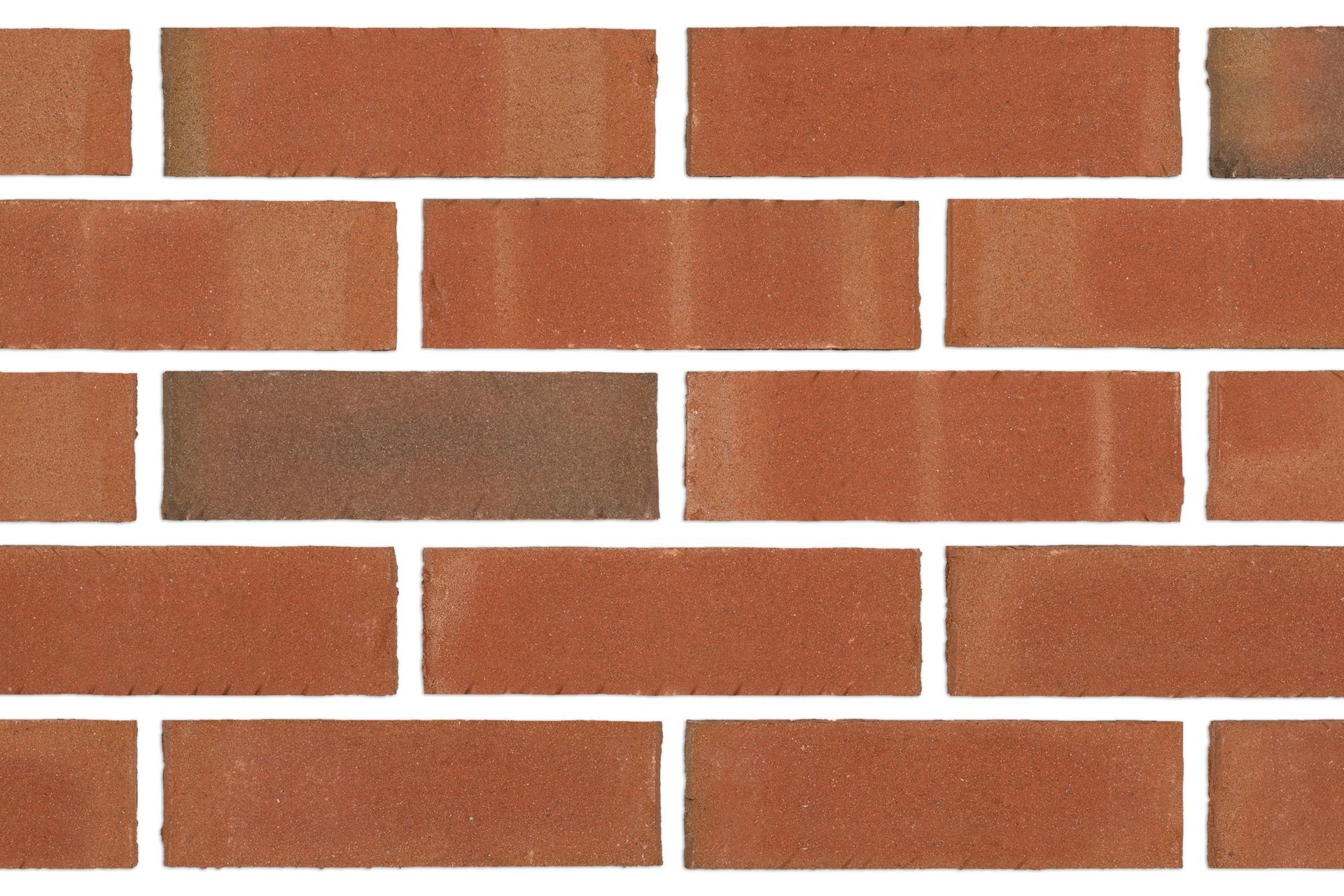

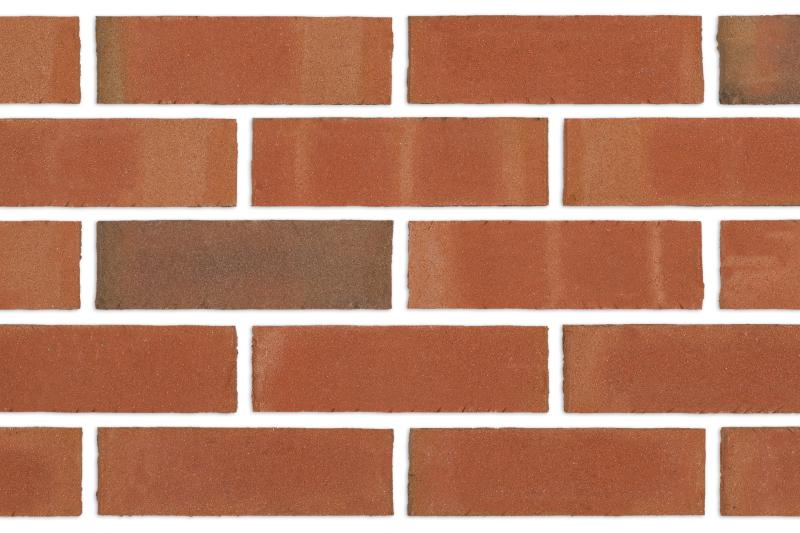

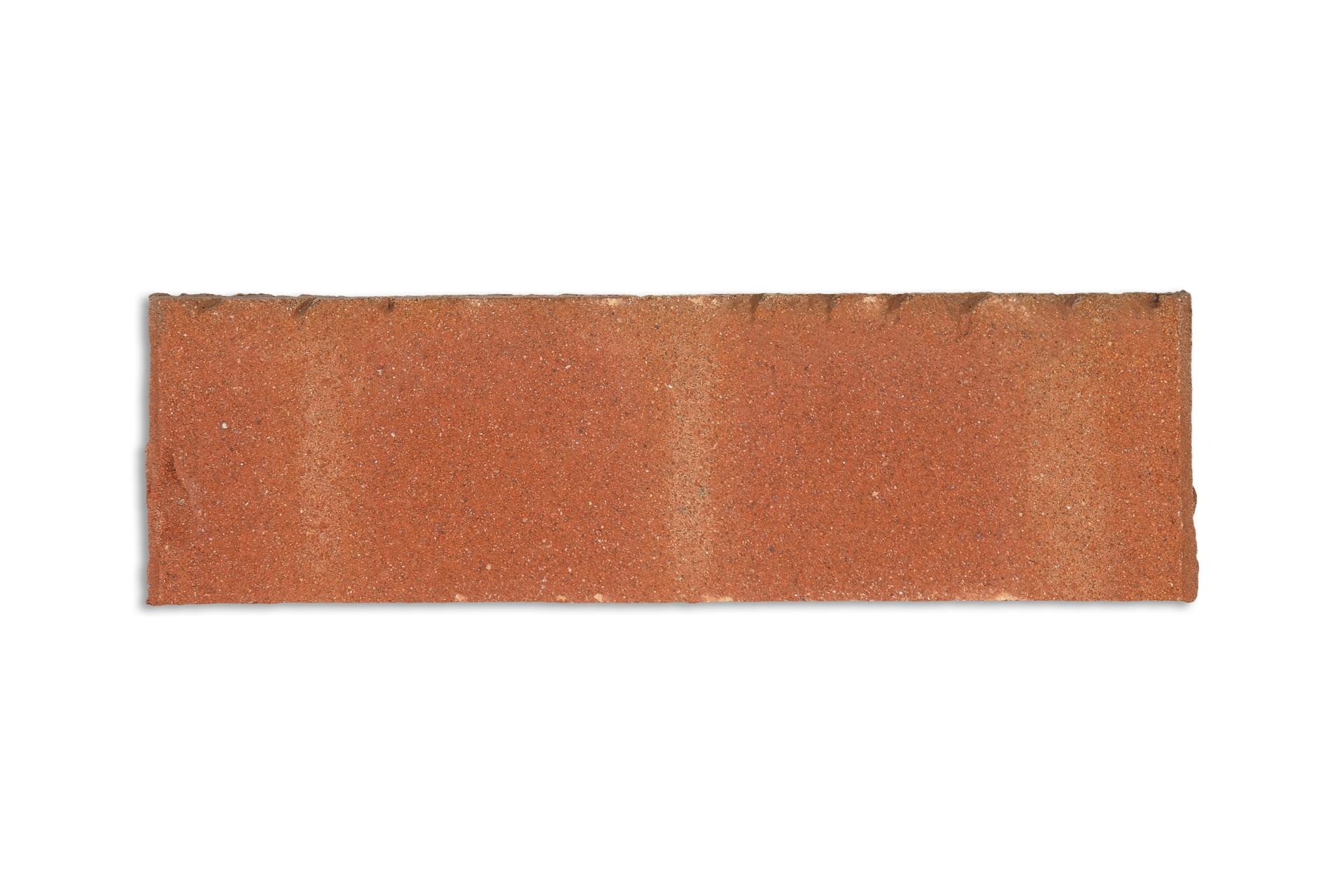

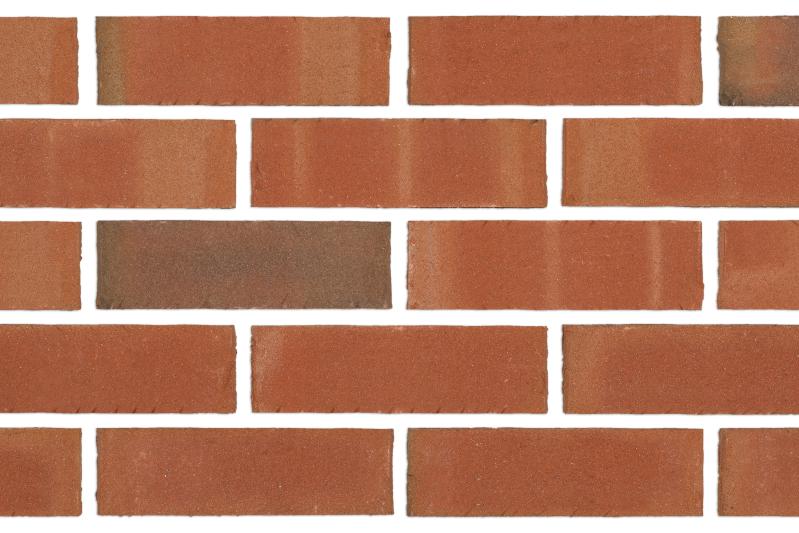

Durham – S23 meets ASTM C1088, Grade Exterior, Type TBS. Extruded thin brick with a sandface finish, in a multicolour brick red blend. Certificate of compliance and laboratory test report to ASTM C67/C67M available on request.
| Size | Face dimension | Thickness | Per sq ft, 3/8 in. joint | Per box |
| Modular (MOD) | 2 1/4 x 7 5/8 in. | 1/2 in. | 6.86 | 40 units, 5.83 sq ft |

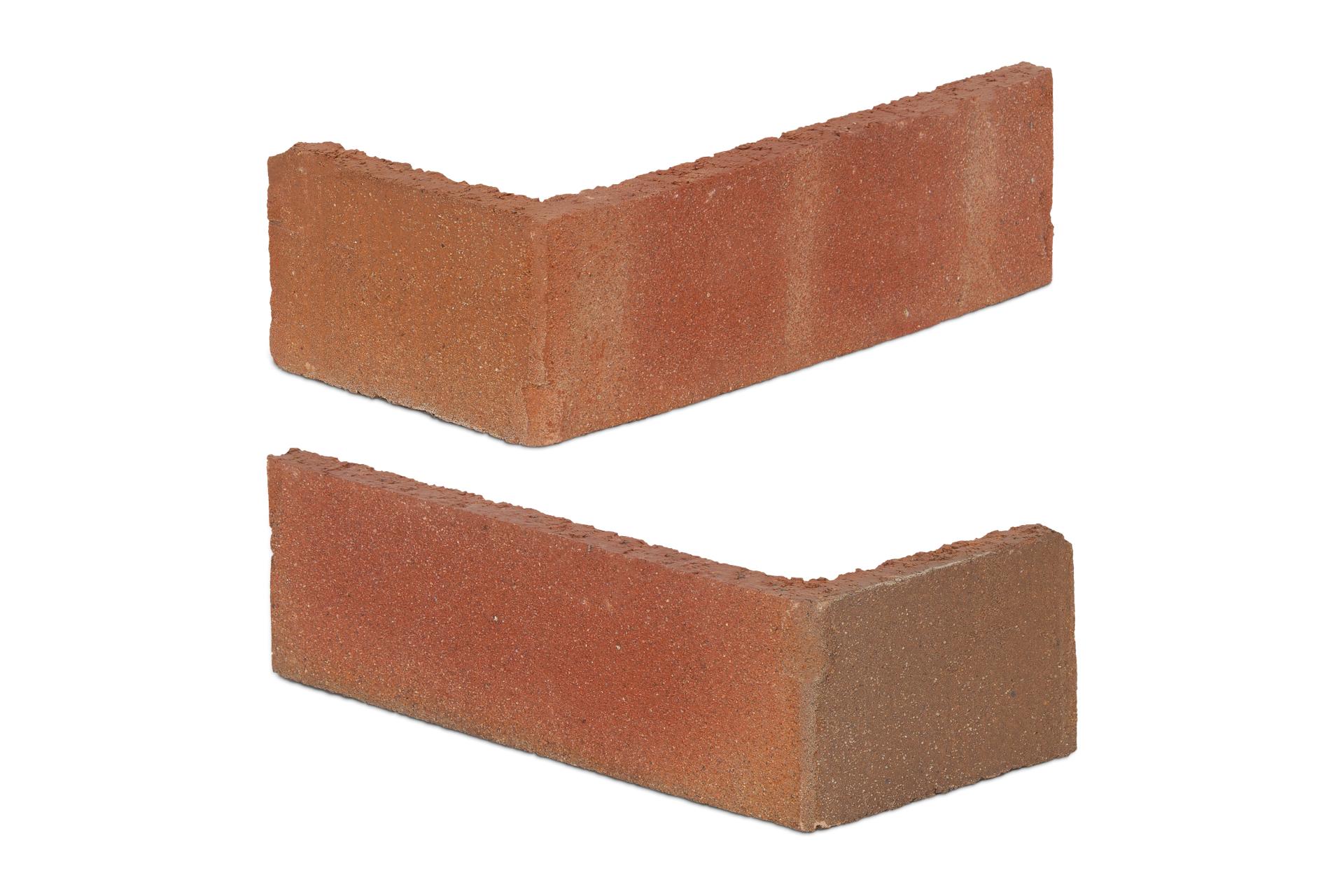

| Corner units | 2 1/4 x 7 5/8 in. face | 1/2 in. | 4.6 per lin ft | 18 units, 3.9 lin ft |
Grade Exterior suits exterior and interior adhered veneer in all weathering regions. Requirements are 17.0 percent maximum 5-hour boiling absorption and 0.78 maximum saturation coefficient, averaged over five units. ASTM C1088 sets no compressive strength requirement for thin veneer brick.
Installs on the Brick It Designer Metal Grid, Moisture Control System and Continuous Insulation systems, and can also be set by conventional thick-set or thin-set. Order 3 percent overage for waste. Target ship date 3 to 5 business days.
Full technical data, tolerances, fire performance and sustainability information are in the Durham – S23 Technical Data Sheet, with the Safety Data Sheet and guide specification, under File Downloads below.
Shapes and Sizes

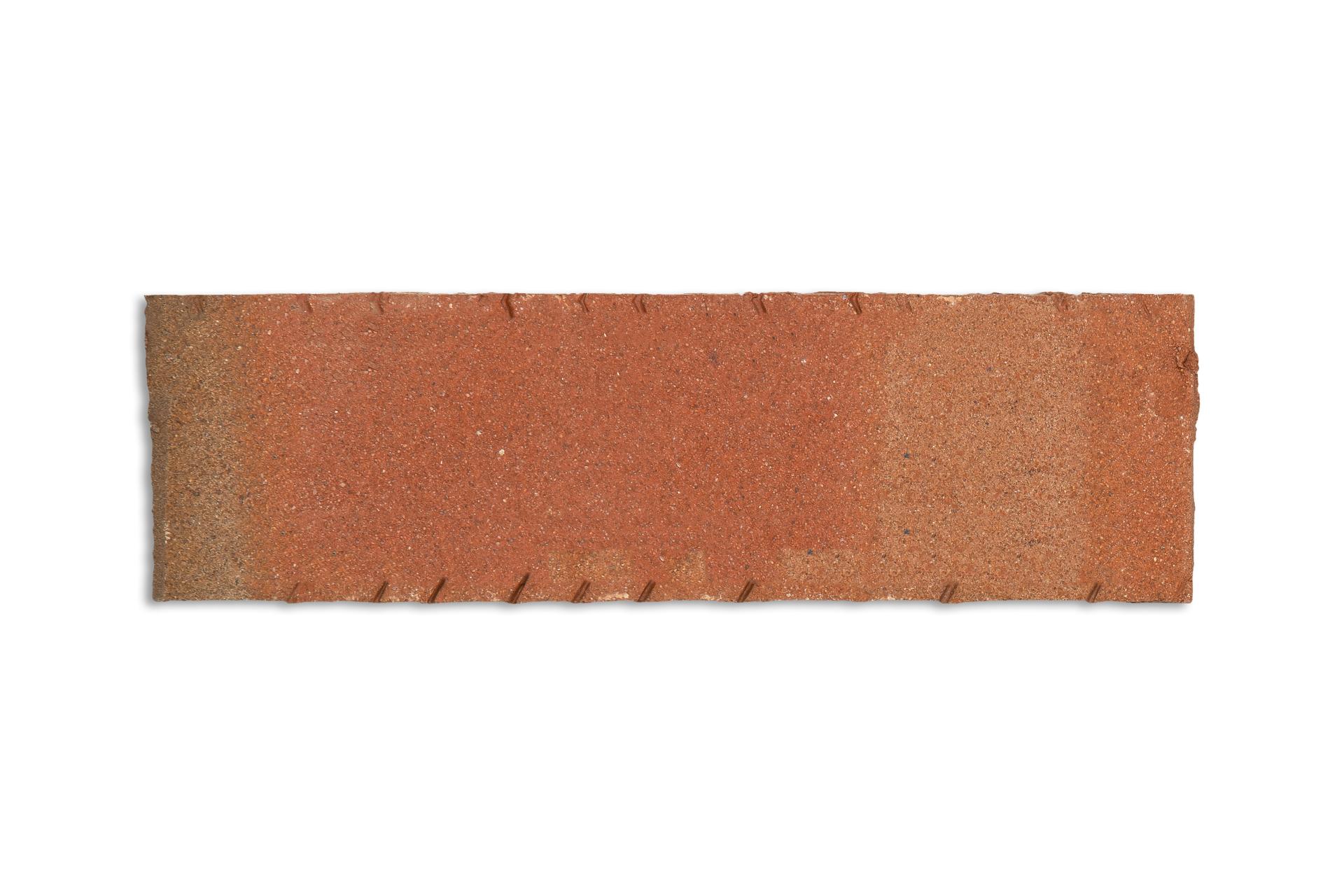

| Modular (MOD) | |
|---|---|
| Height | 2 1/4" |
| Length | 7 5/8" |
| Thickness | 1/2" |

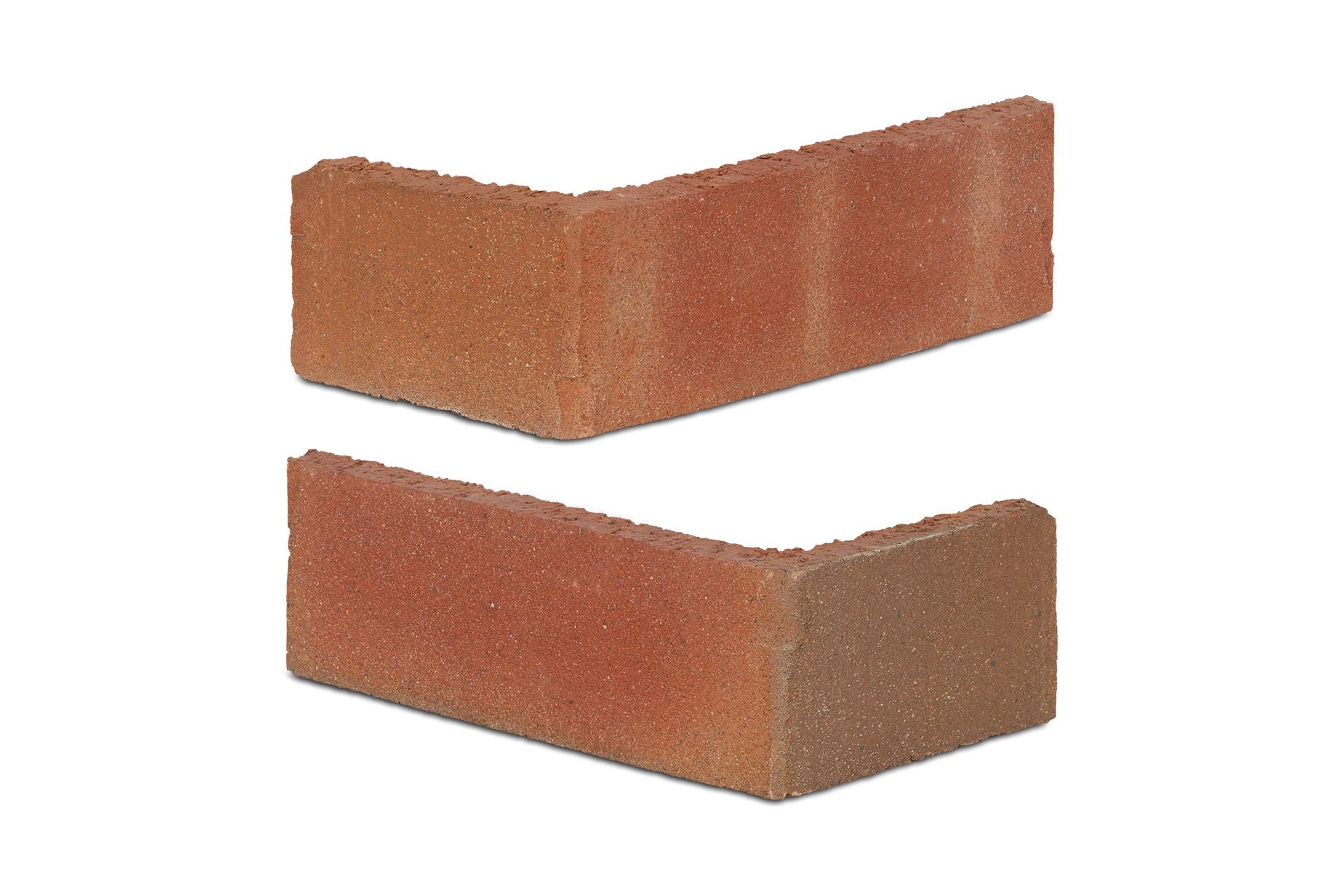

| Modular (MOD) | |
|---|---|
| Height | 2 1/4" |
| Length | 7 5/8" |
| Return | 3 5/8" |
| Thickness | 1/2" |

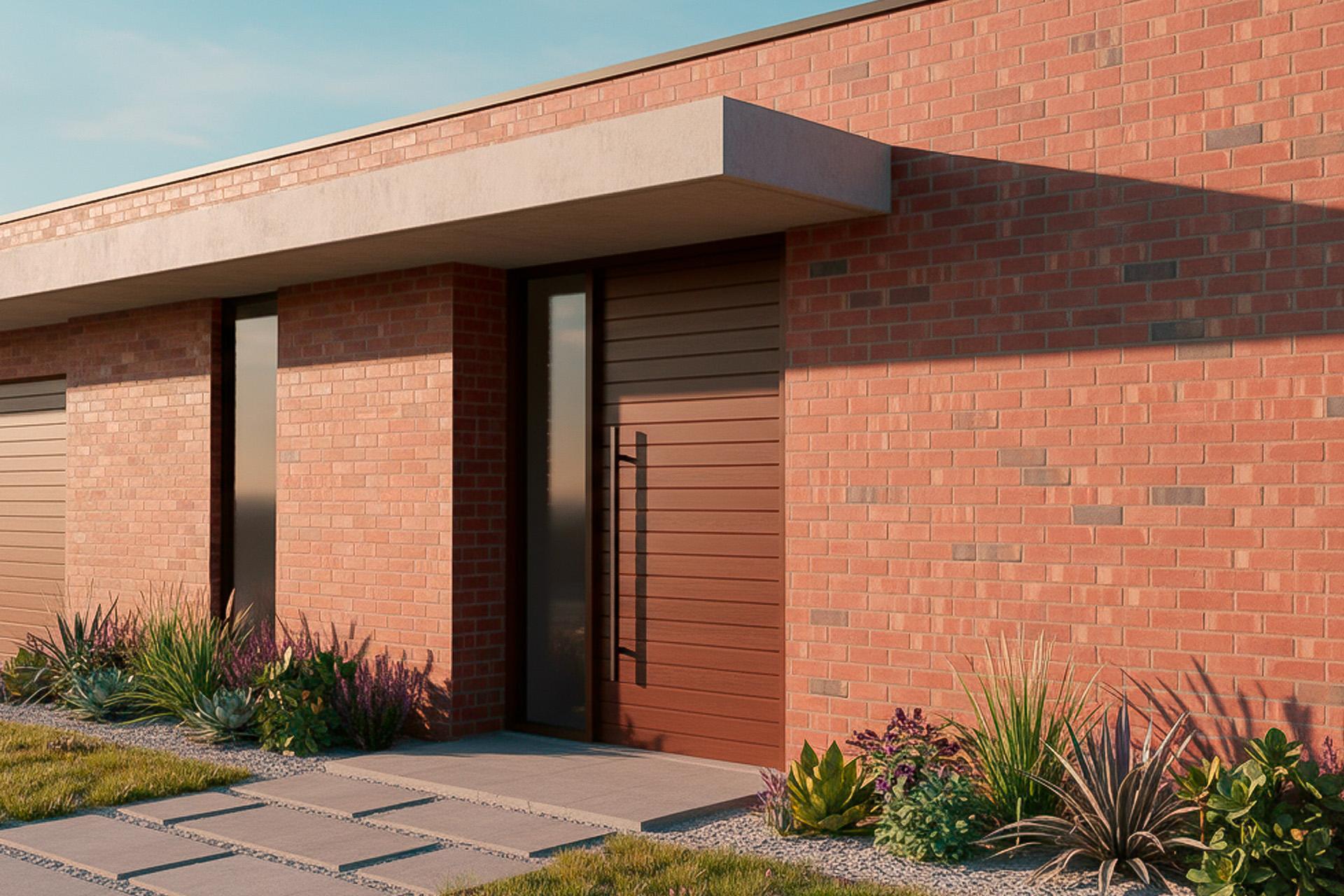

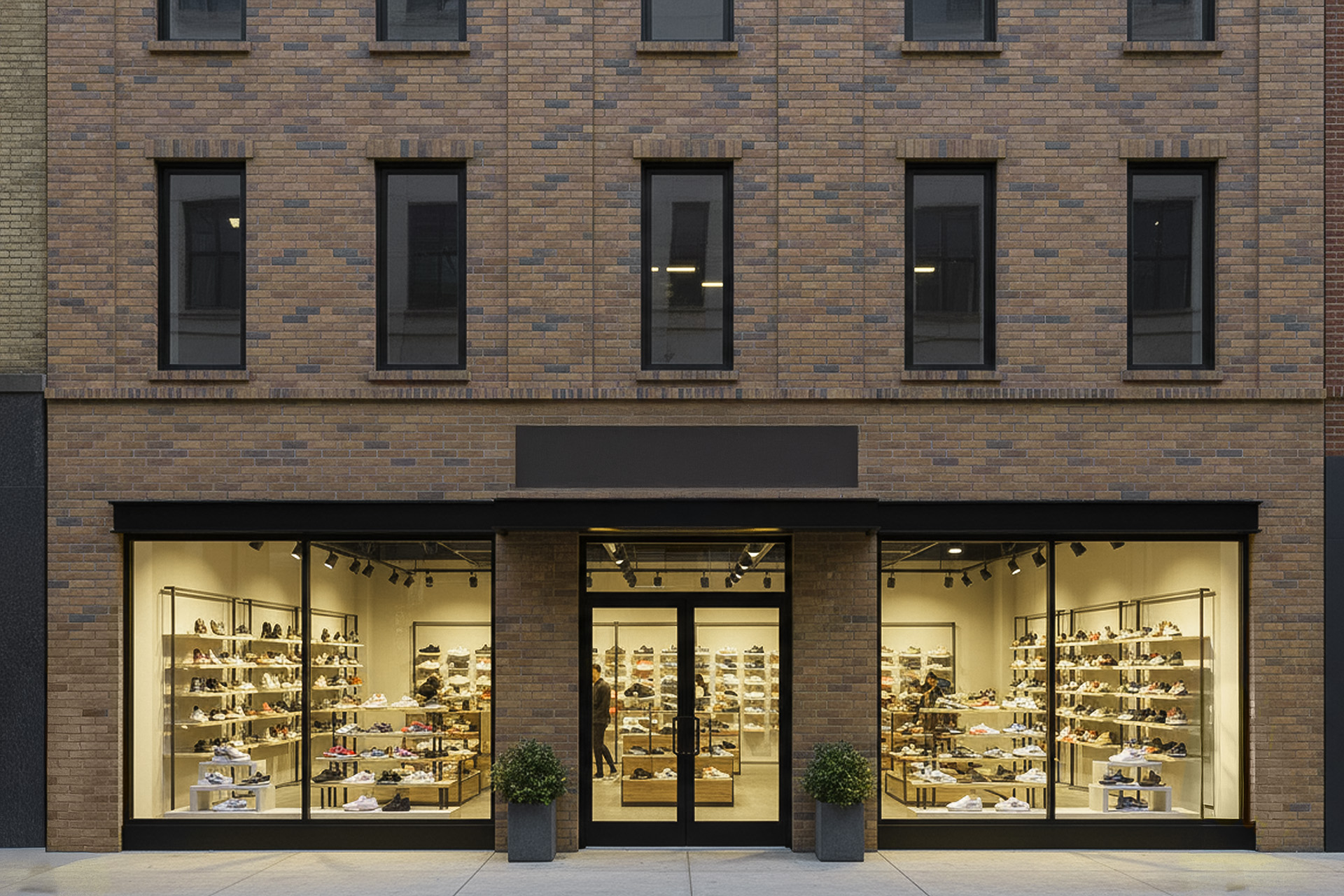

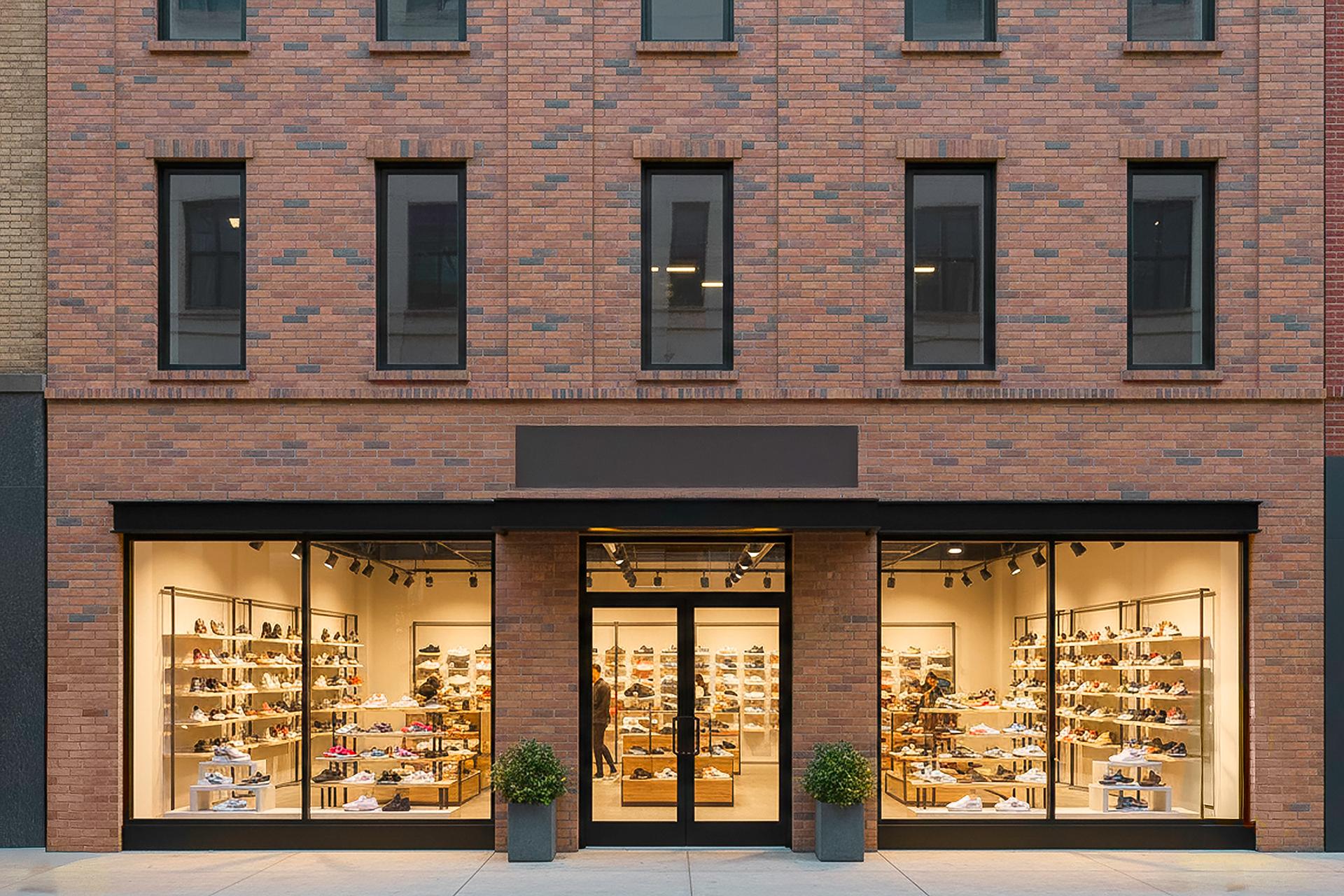

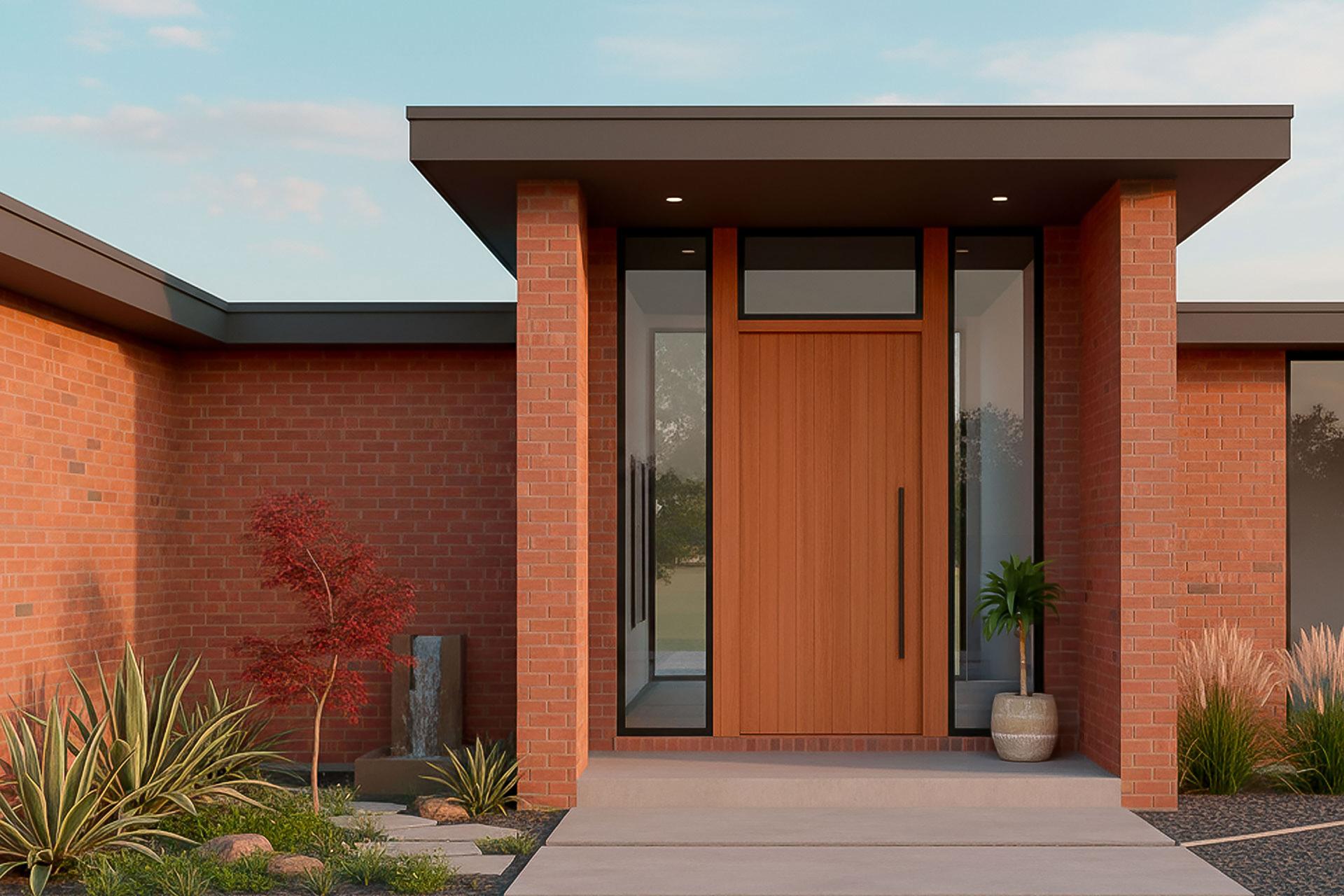

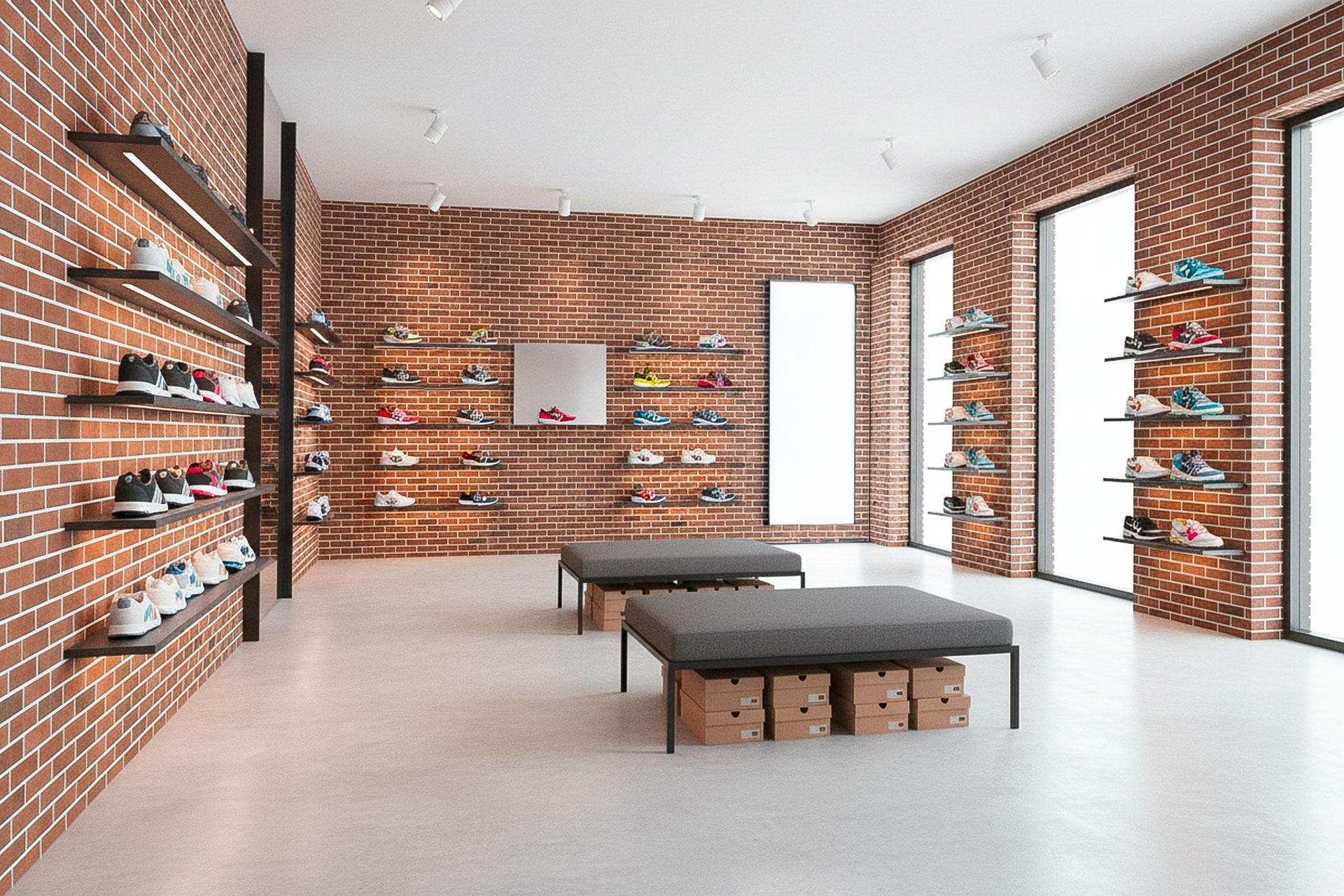

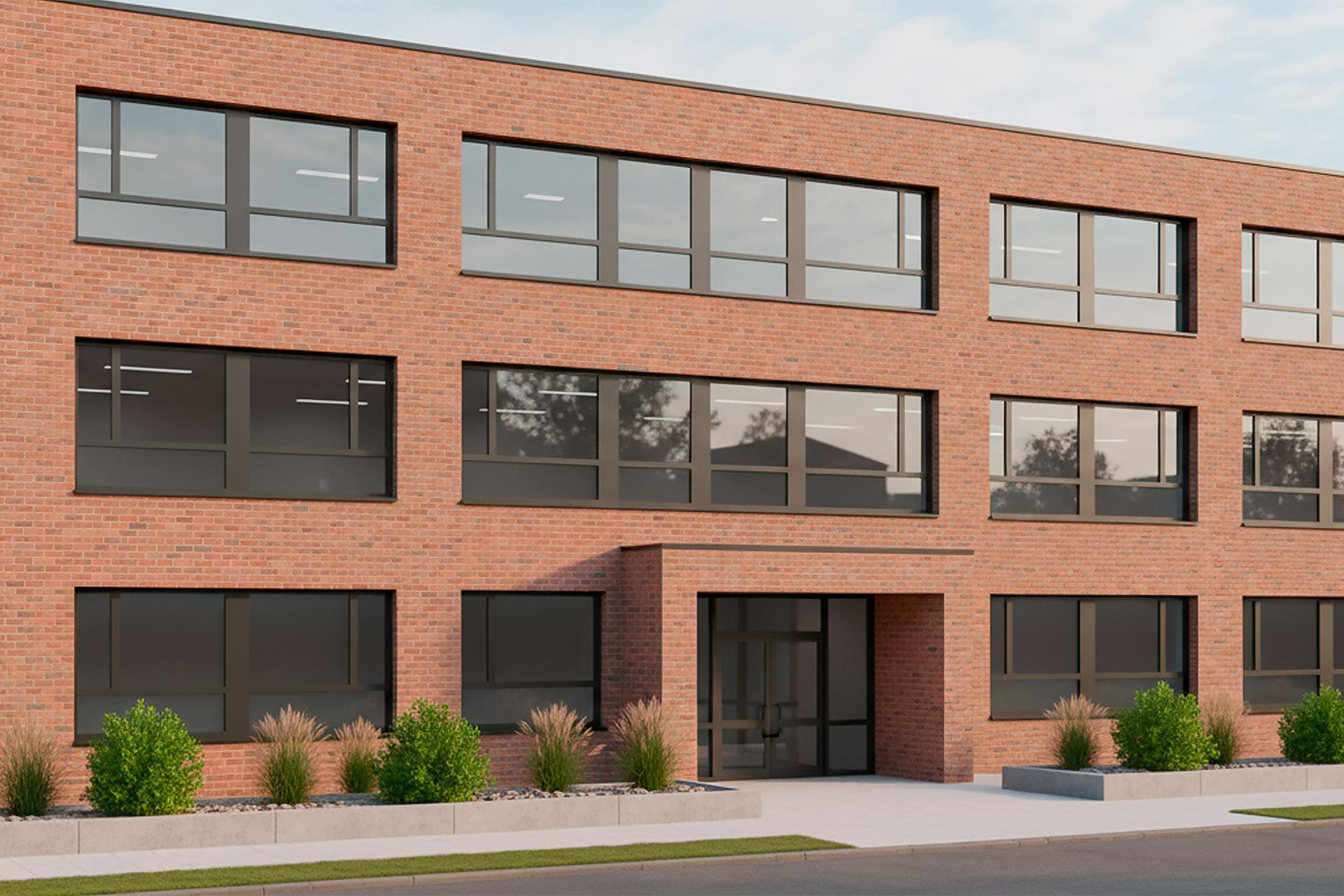

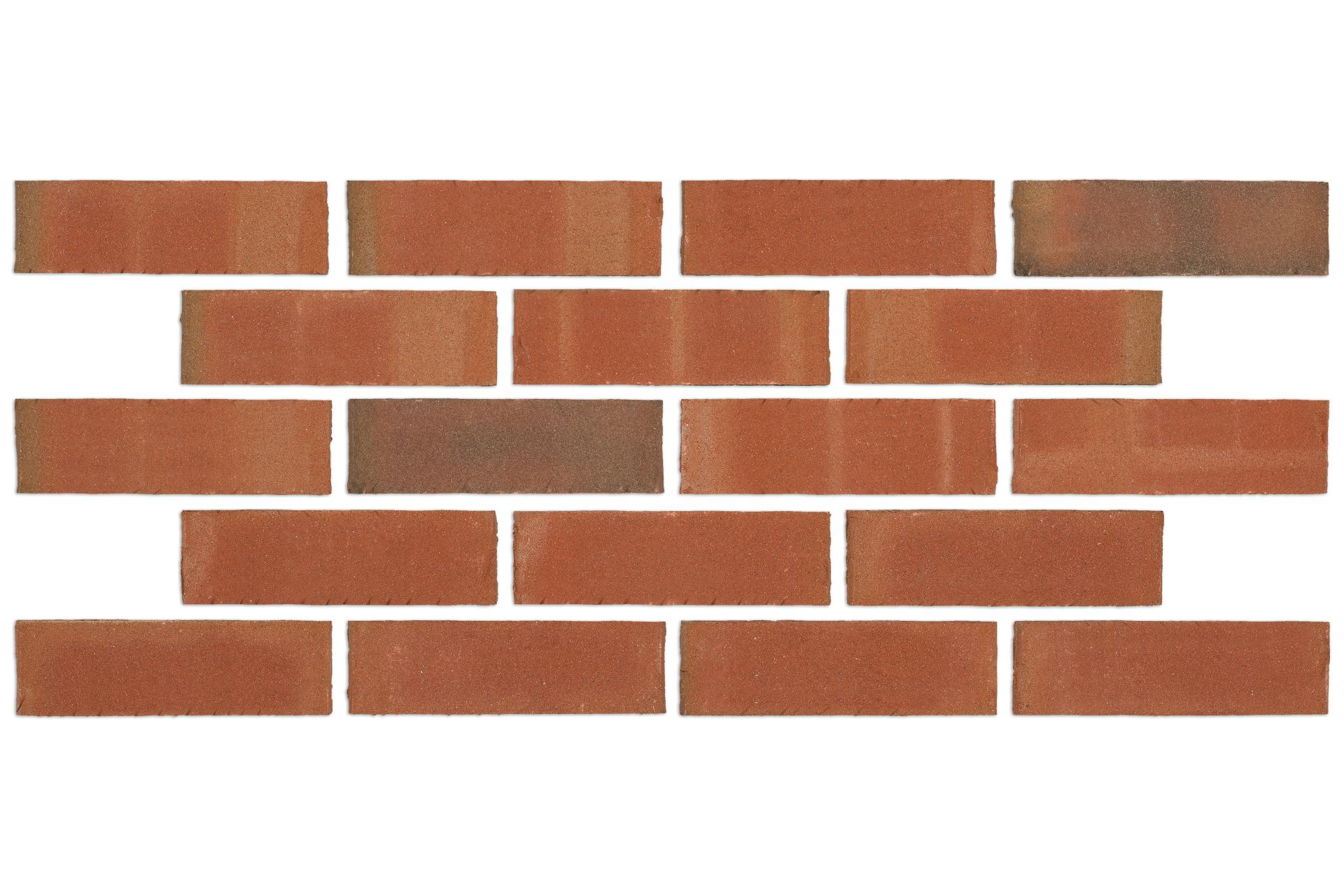

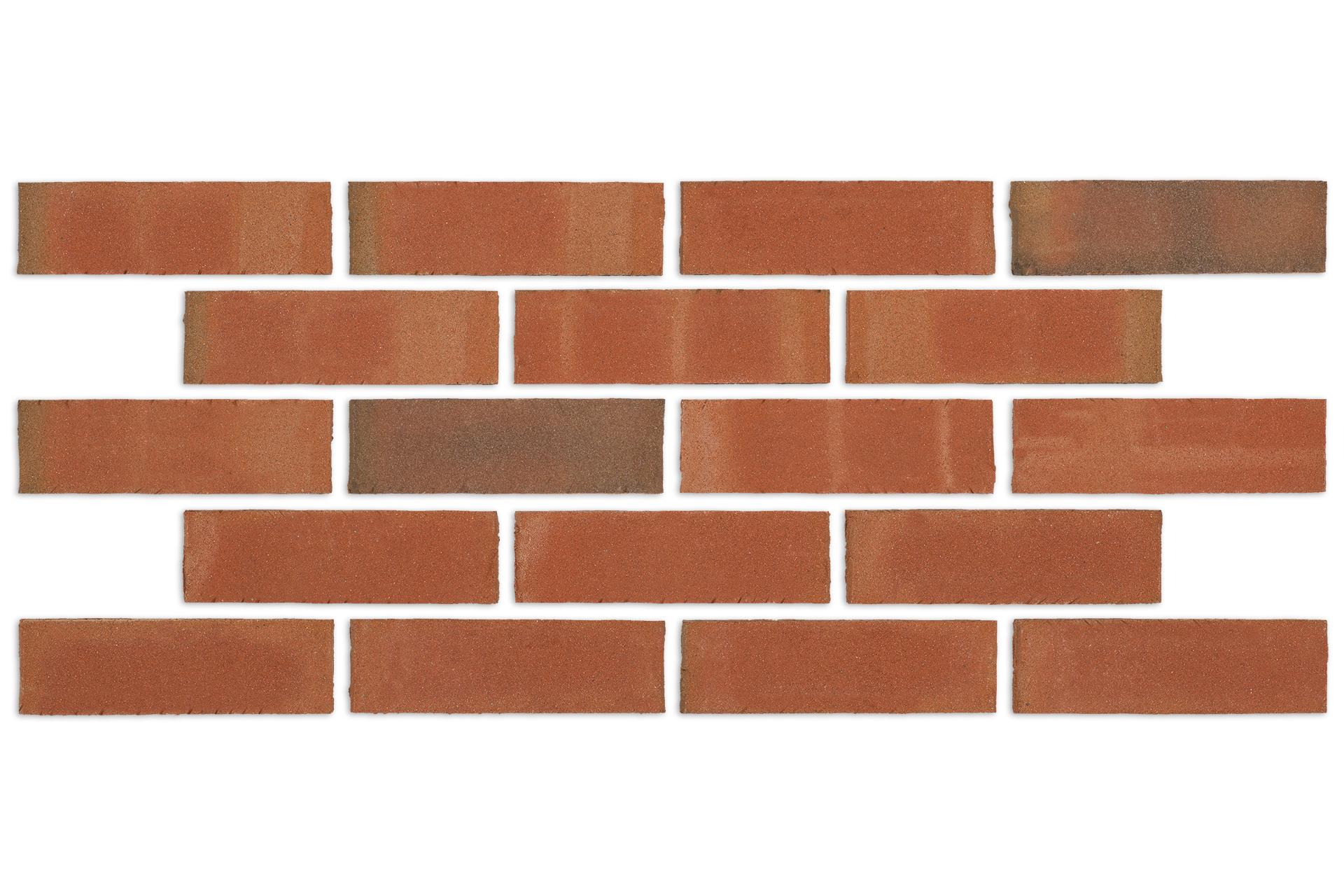

Gallery
File Downloads
Any questions so far?
We can help.
If you need help with your order or consult our design experts for advice, do not hesitate to contact us. We're happy to help!
