Concealor Pancake Head Screws

Please login to use favourites

Discover the difference with our top-quality products designed to fit your needs. Enjoy great value, reliable performance, and fast delivery. Don’t wait—treat yourself to the best! Shop now and experience satisfaction with every purchase you make.
Product Options

Below you can choose the available product options.

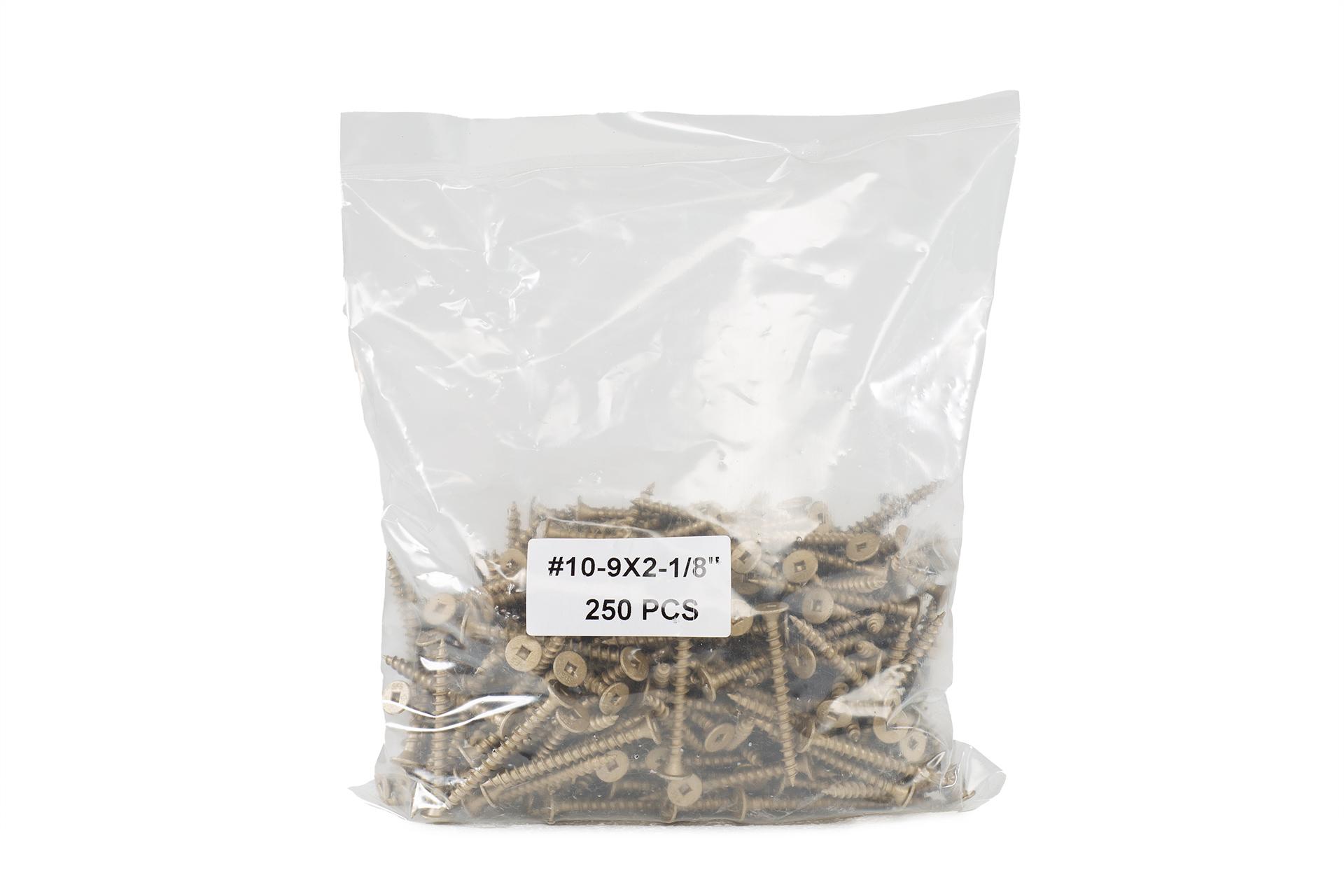

#10-9 x 2 1/8, Bag of 250 pcs
#10-9 x 2 1/8, Bag of 250 pcs
#10-9 x 2 1/8, Bag of 250 pcs
$51.23
#10-9 x 2 1/8, Bag of 1,500 pcs
#10-9 x 2 1/8, Bag of 1,500 pcs
$235.05
$0.00
$0.00

Overview

The CONCEALOR® Ultra Low Profile screws are favored for securely affixing metal panels to wooden structures, ensuring an effortless set-up and exceptional holding power. Outfitted with the durable TRI-SEAL® coating, they boast a resistance to over 1,000 hours of salt spray exposure, rendering them versatile for both treated wood and fire-resistant timber applications.

Technical Information

This product is recommended when customer is choosing to use manual fastening method of Brick It Metal Panels to wood, or light gauge steel studs.

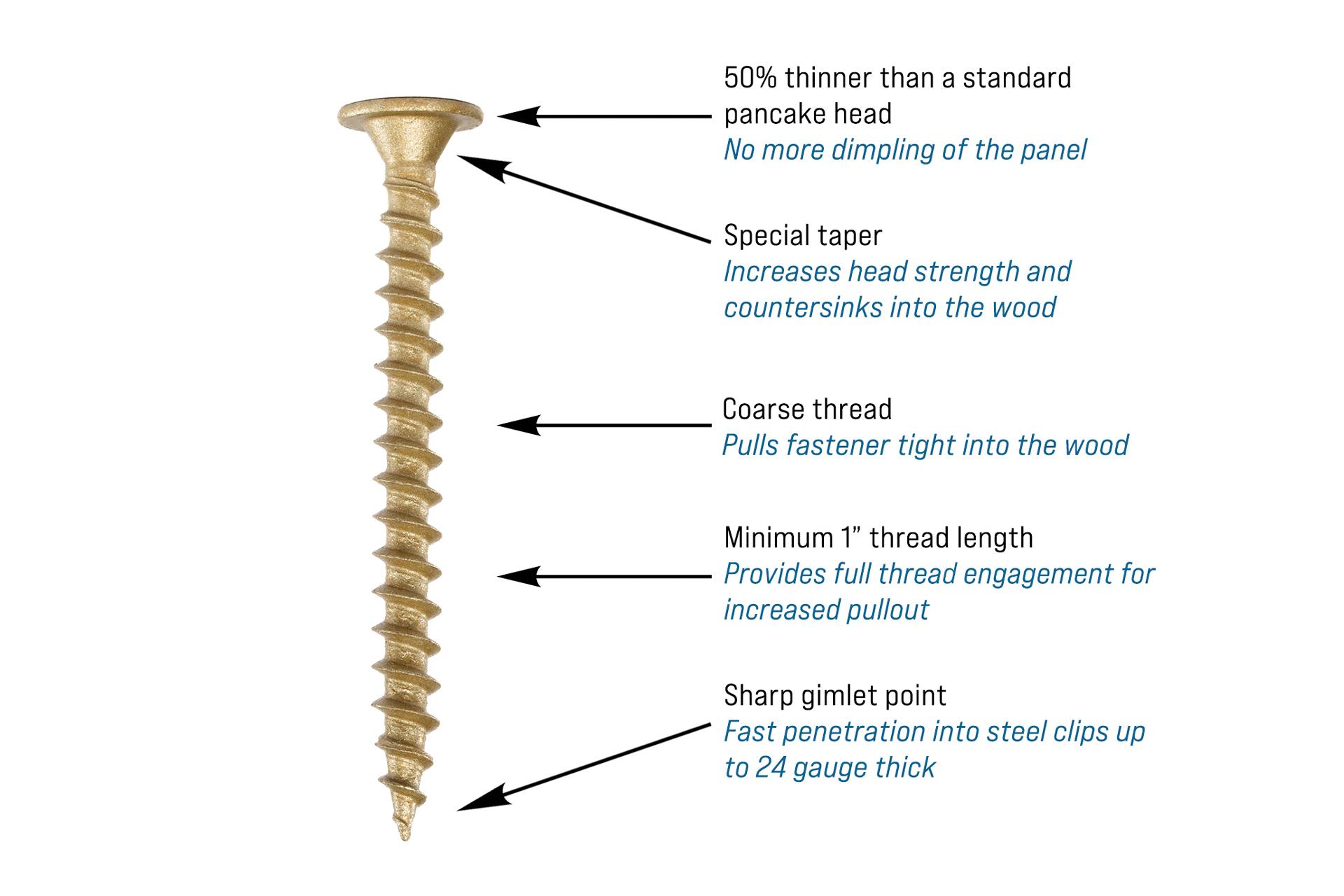

Description: #10-9 Gimlet Point self-tapping screw

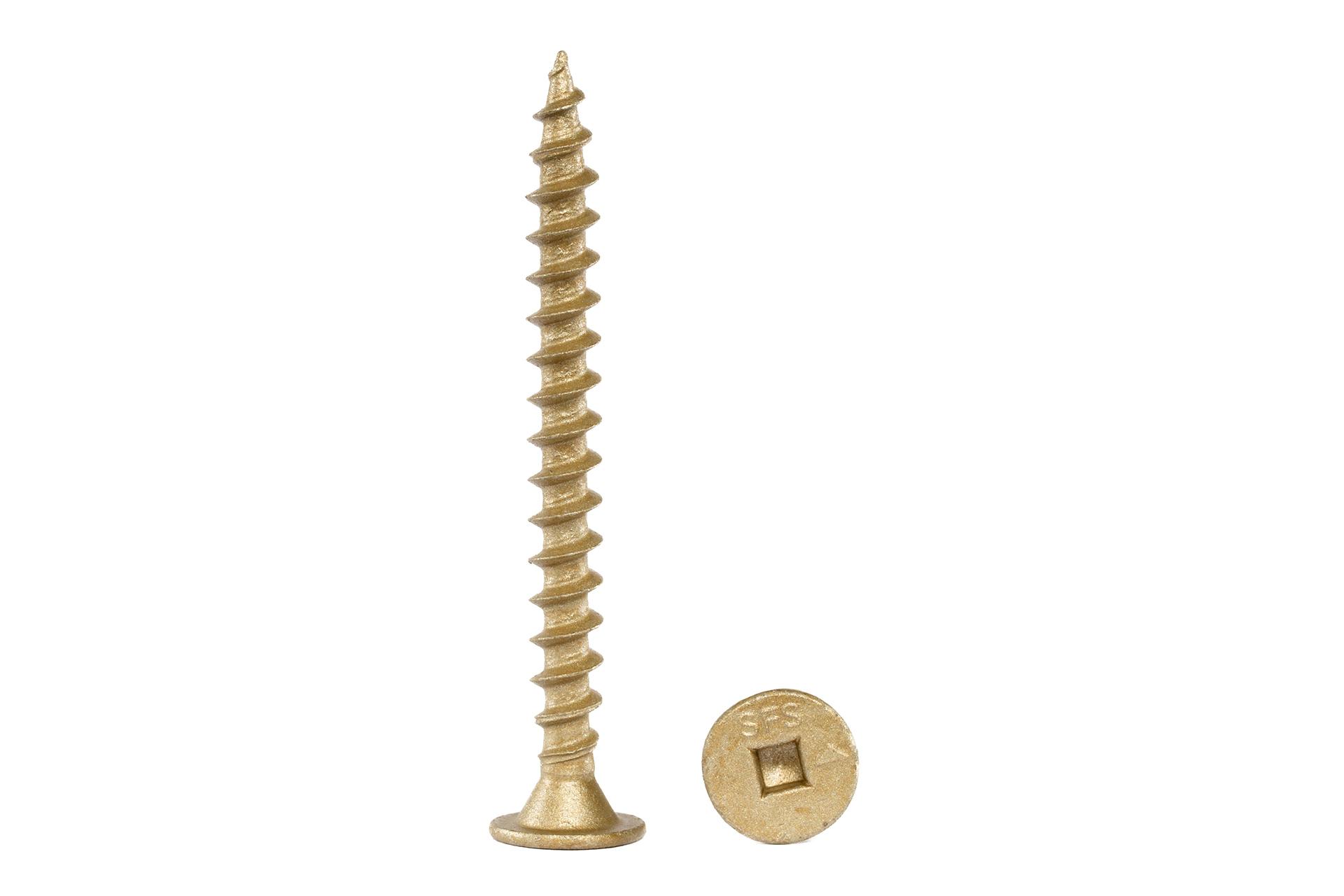

Head Style: Ultra low pancake head with taper.

Drive System: #2 square recess

Head Thickness: .040”

Material: C1022 carbon steel

Heat Treat: Case hardened to ANSI/ASME B18.6.4 specification

Carbon Steel: TRI-SEAL™ long-life coating (1,000hrs. salt spray)

Stainless Steel: Passivated (48hrs. salt spray)

Videos

File Downloads

Documentation
Submittal Sheet
PDF
Product Sheet
PDF
FM Approval Report
PDF
Impact Tool Use
PDF
Technical Data
PDF
Miami-Dade County Approved
PDF
