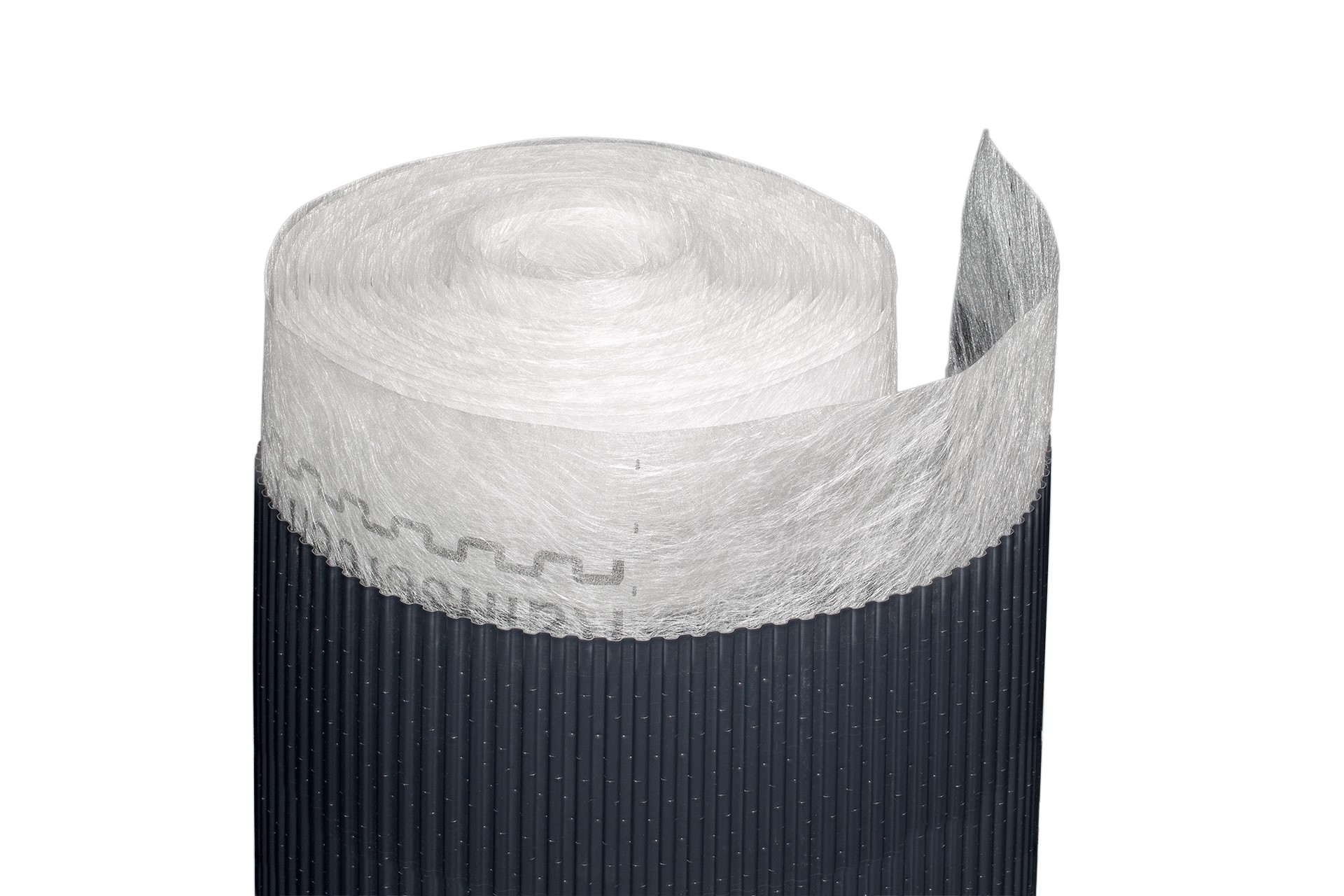

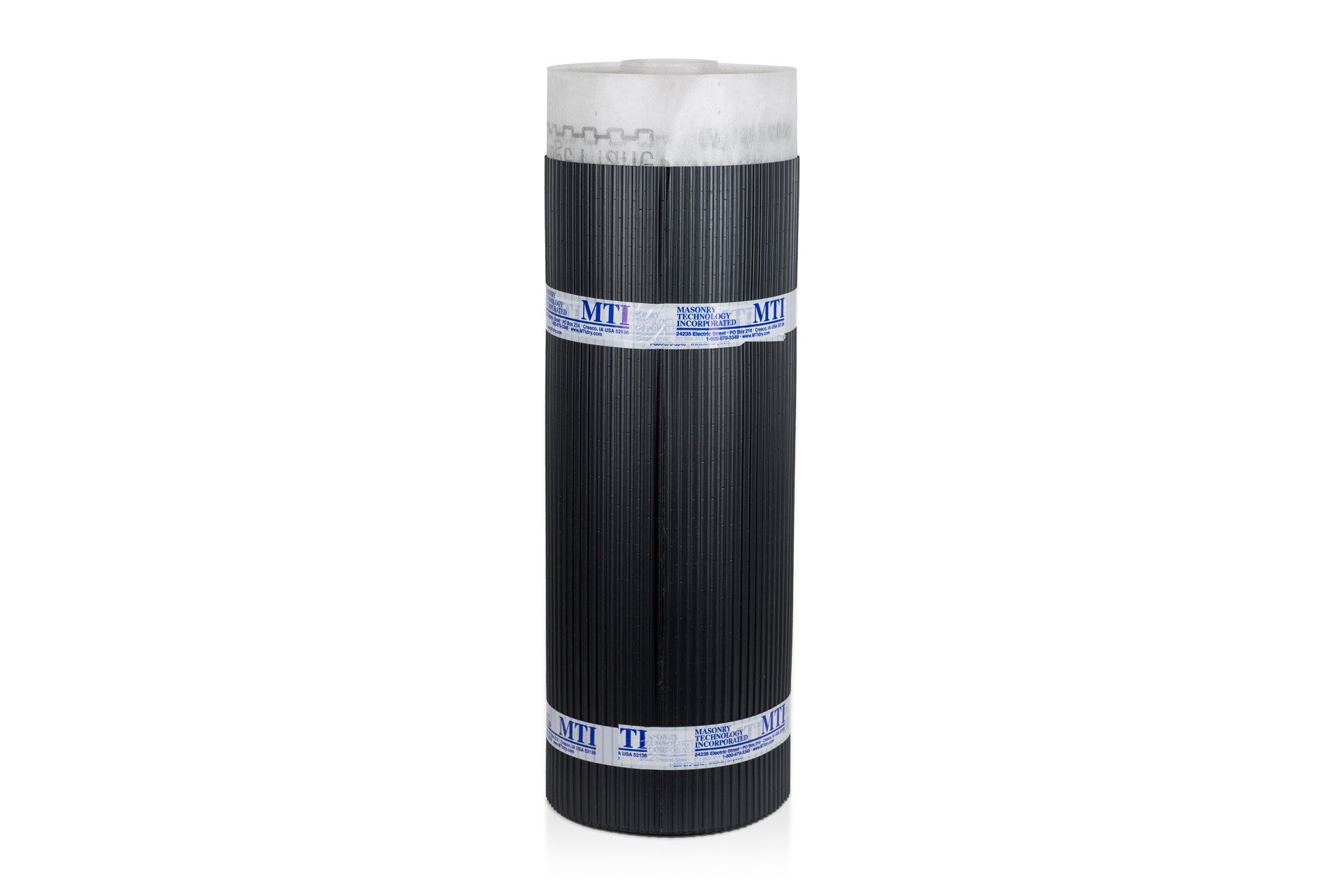

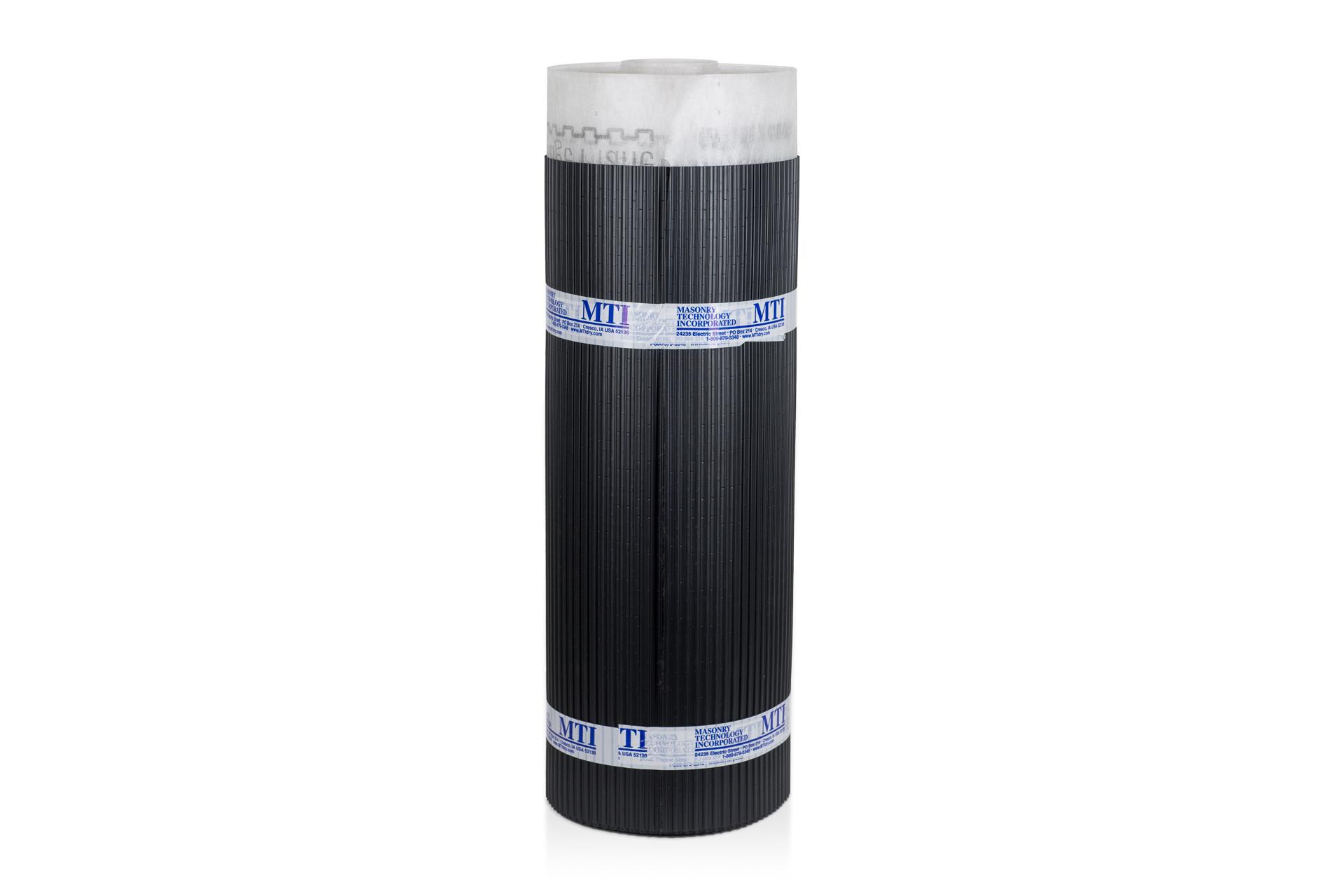

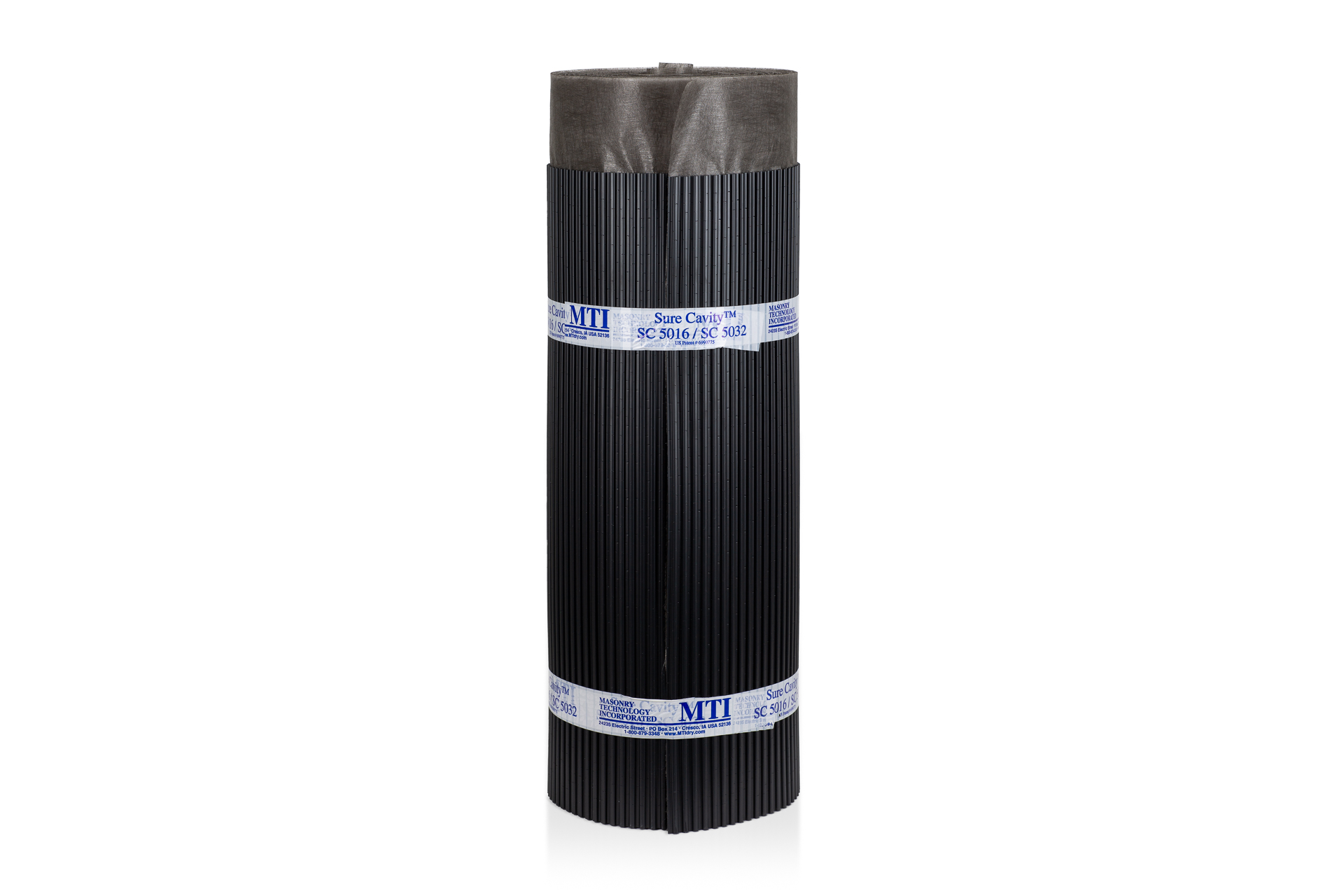

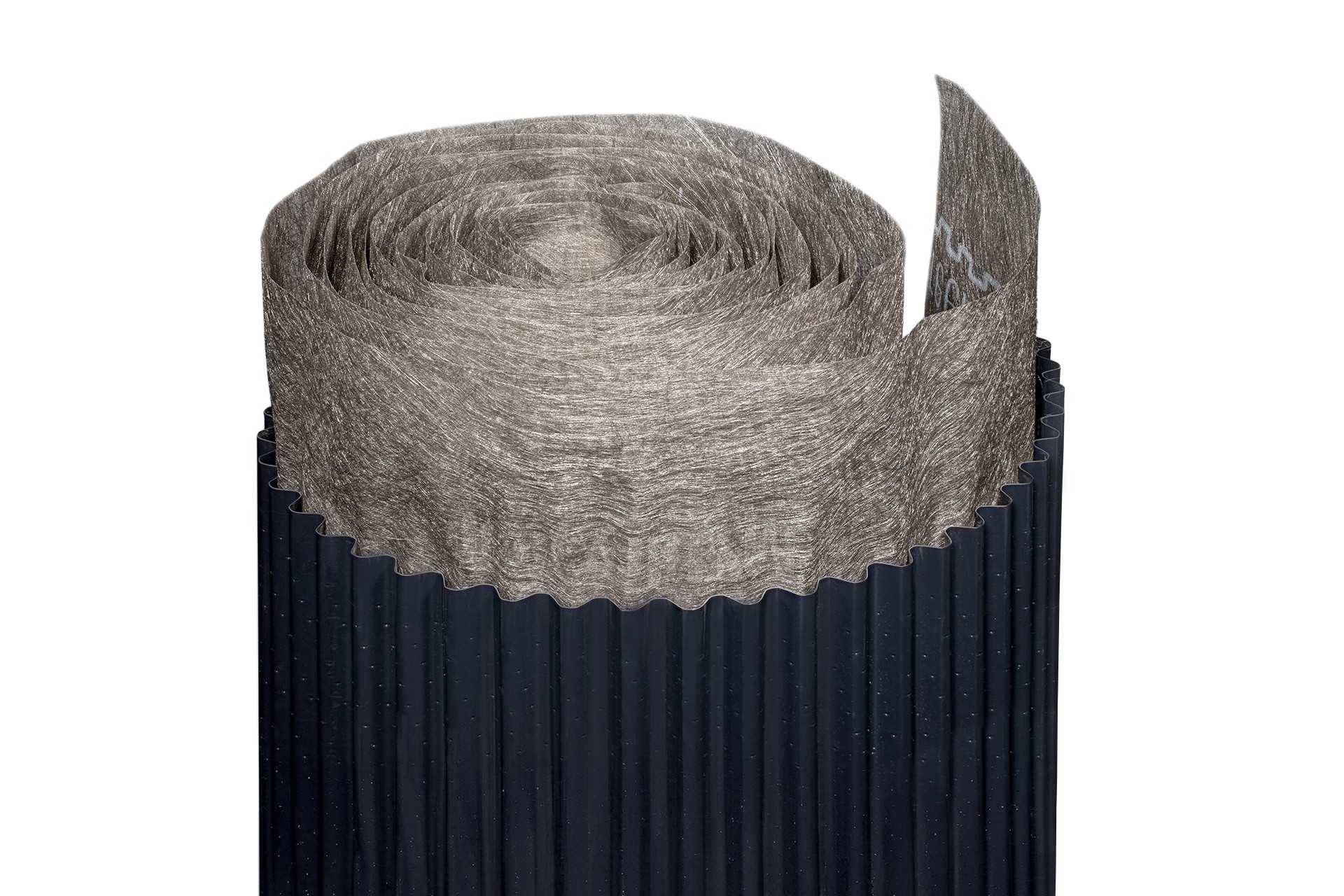

Sure Cavity Wide Drainage Mat

Discover the difference with our top-quality products designed to fit your needs. Enjoy great value, reliable performance, and fast delivery. Don’t wait—treat yourself to the best! Shop now and experience satisfaction with every purchase you make.

Product Options

Below you can choose the available product options.

Sizes:

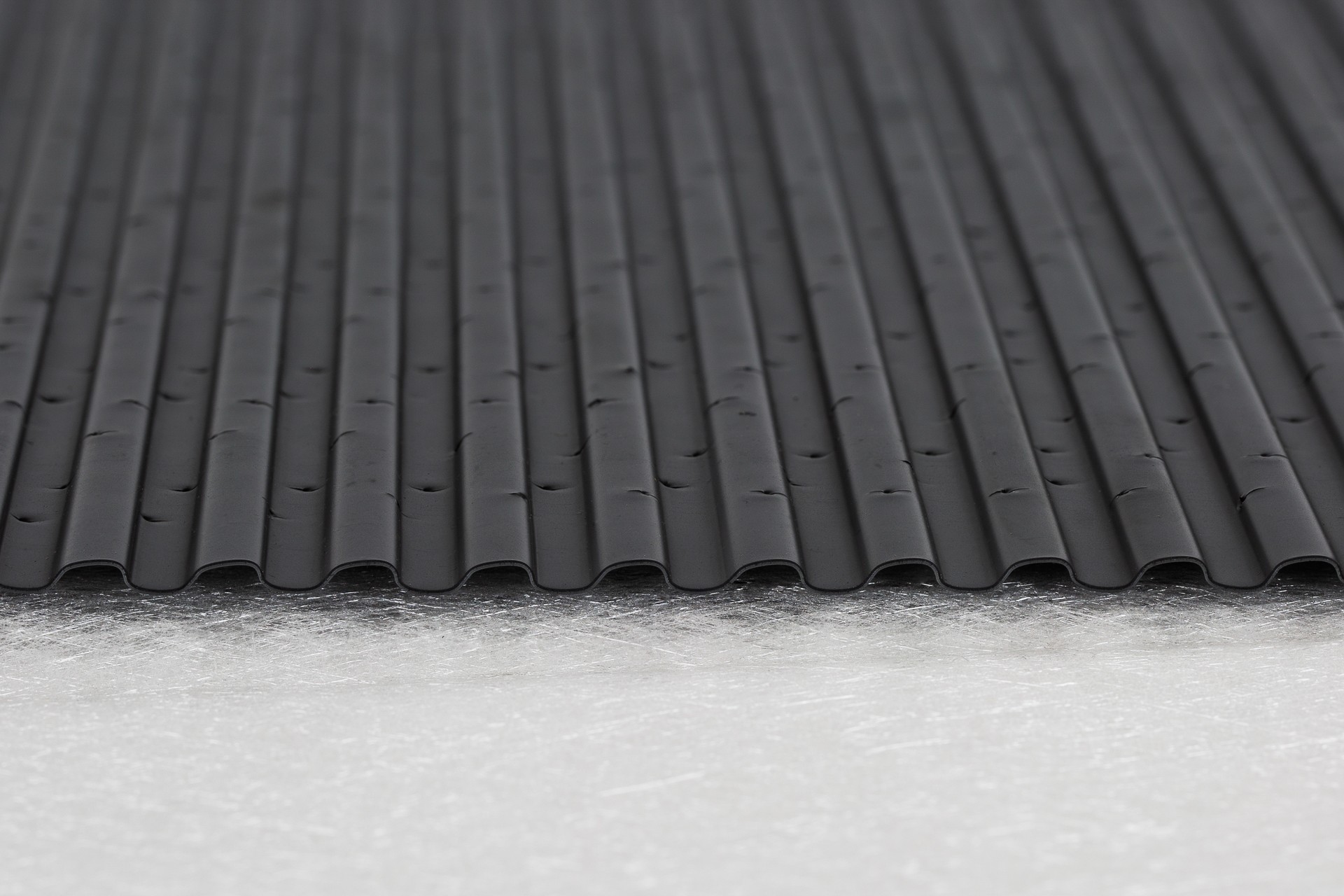

1/8", 200 sq ft

$201.76

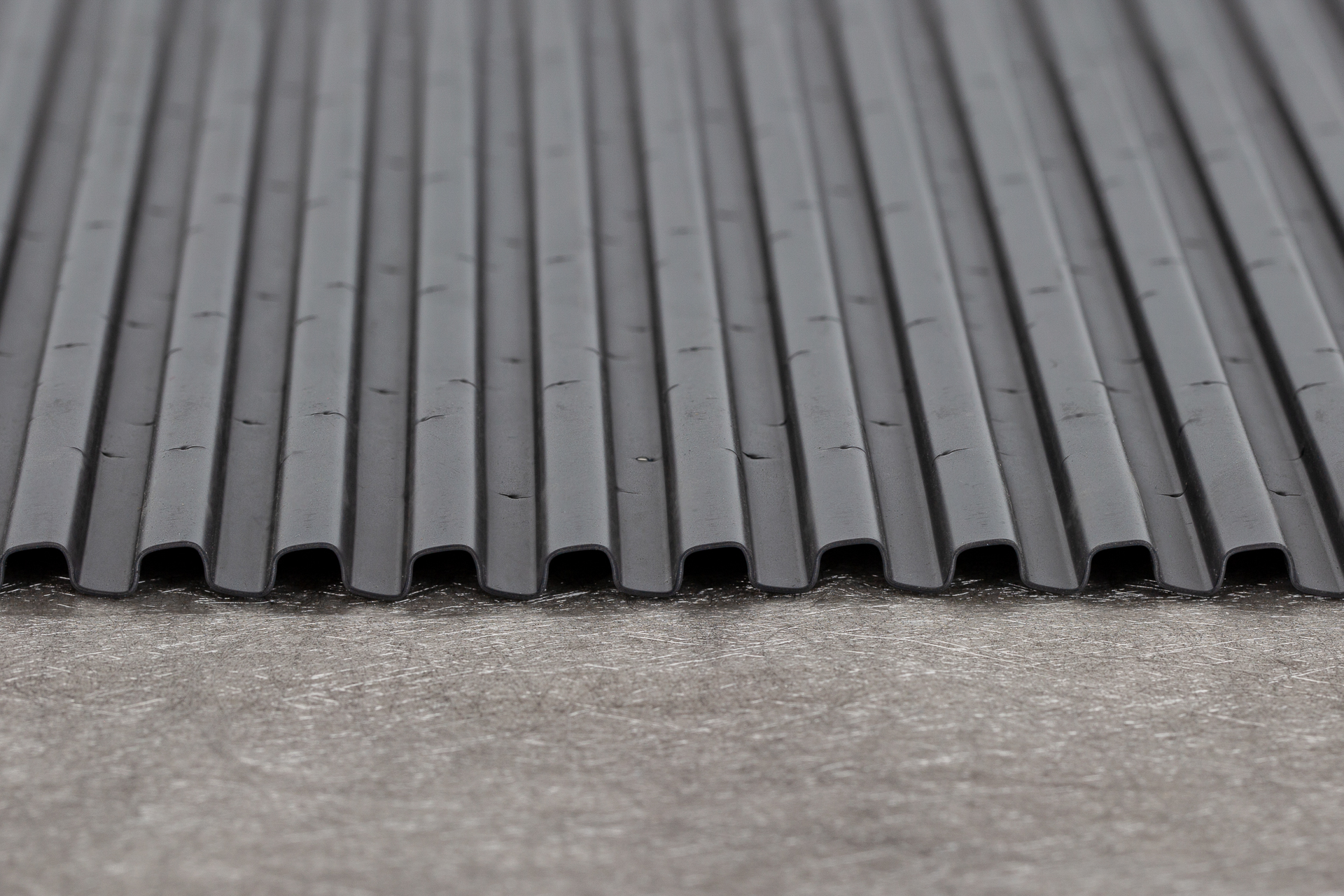

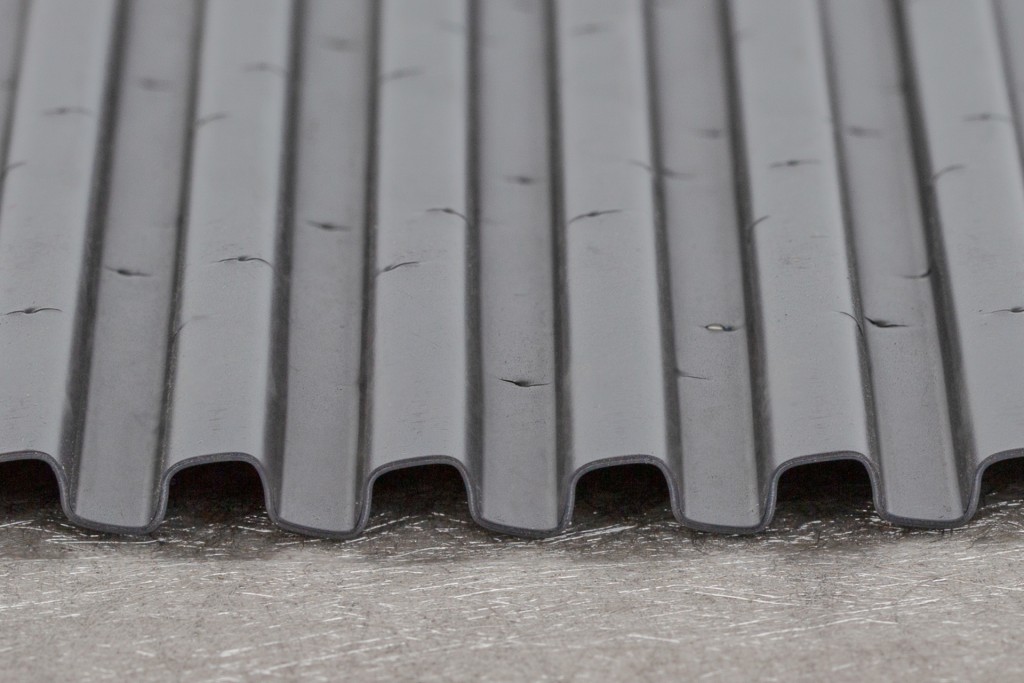

3/16" - most popular, 132 sq ft

$196.85

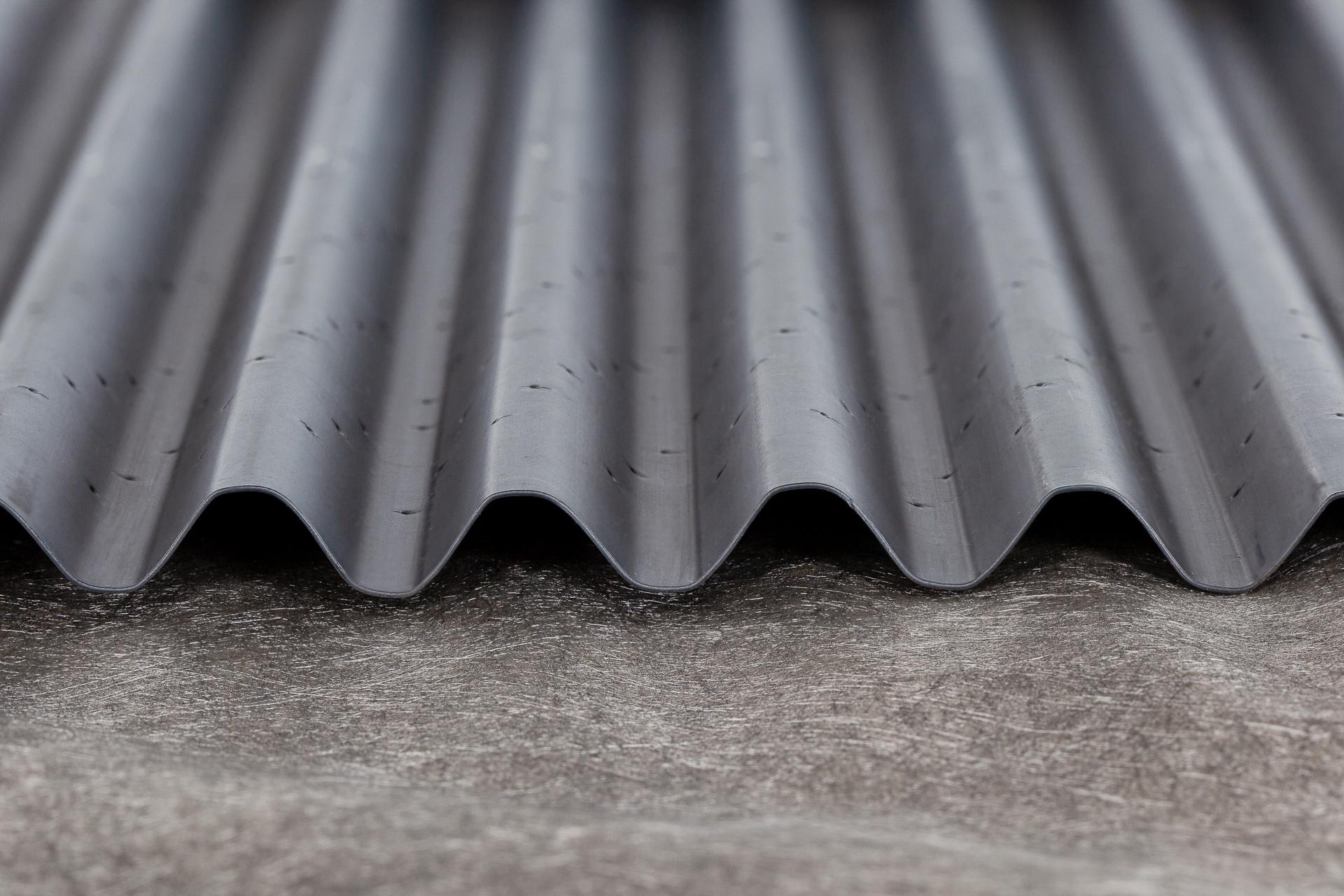

3/8" (10mm), 66 sq ft

$123.02

Overview

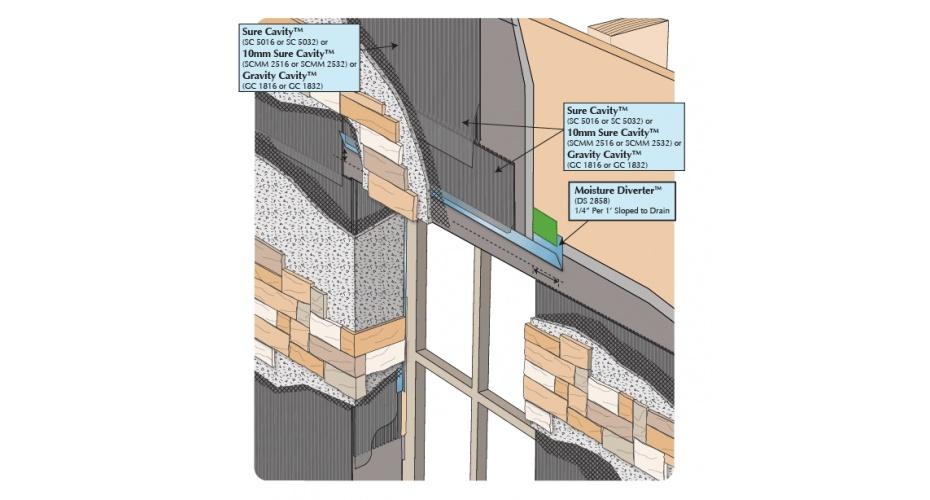

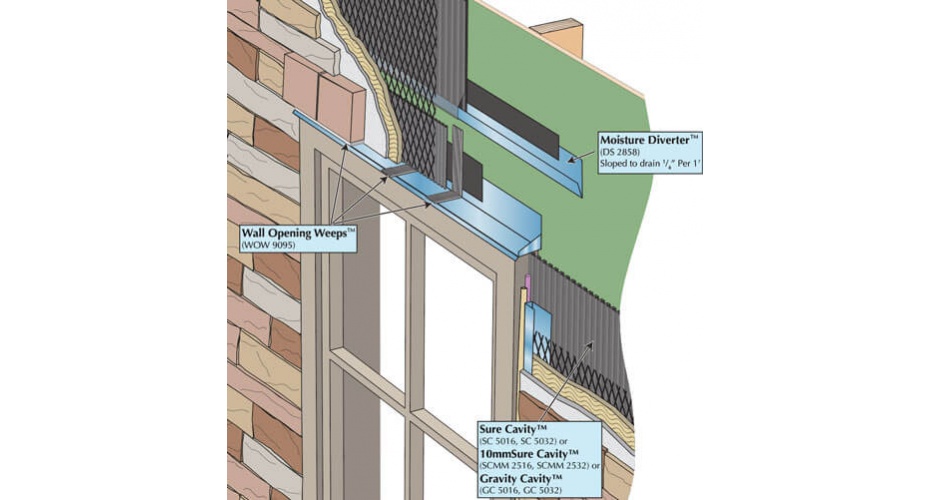

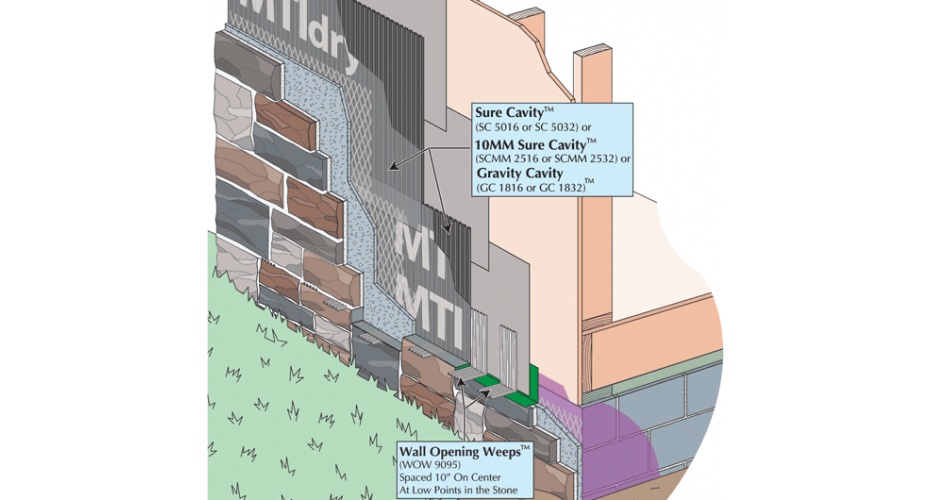

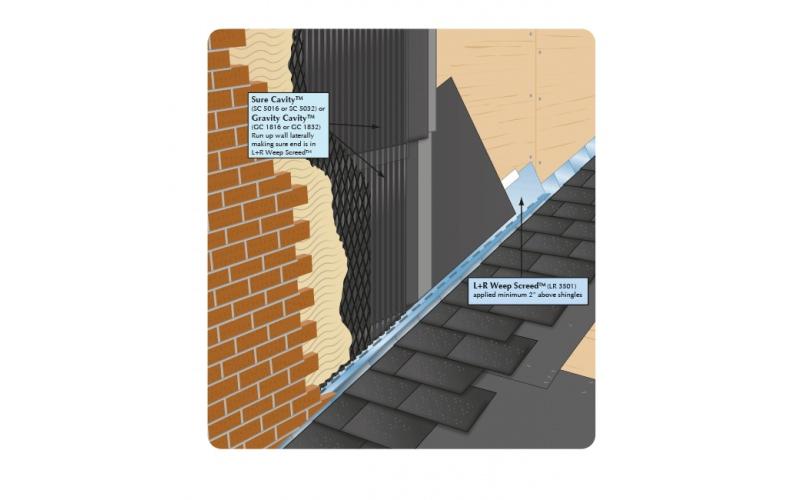

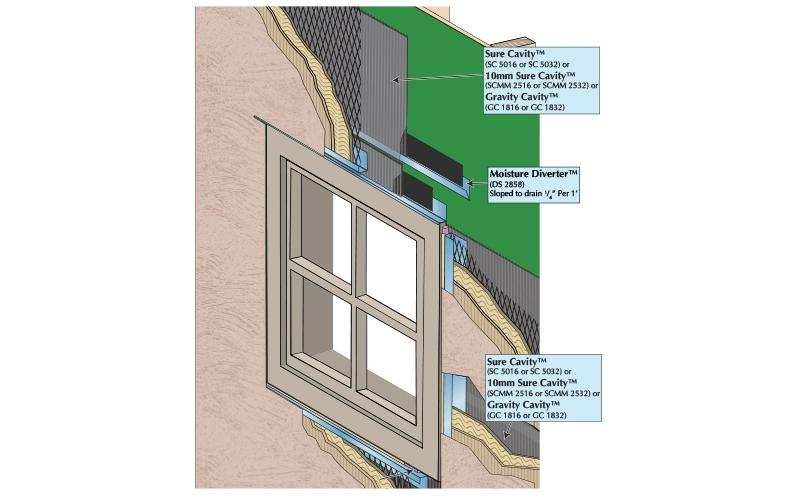

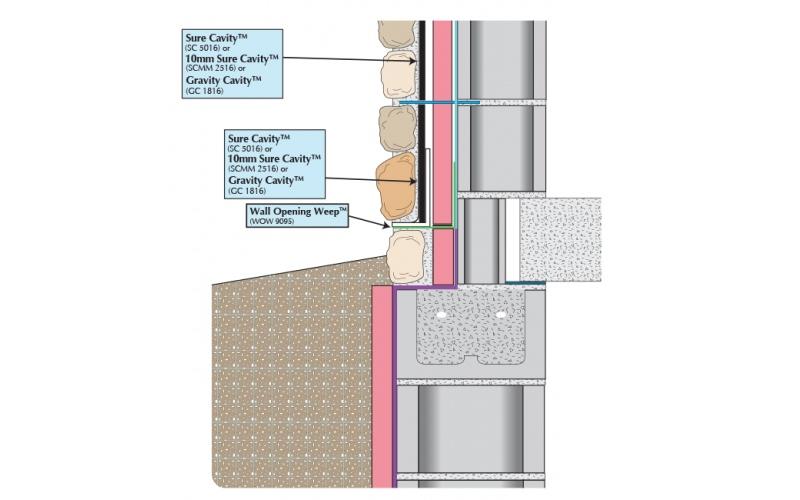

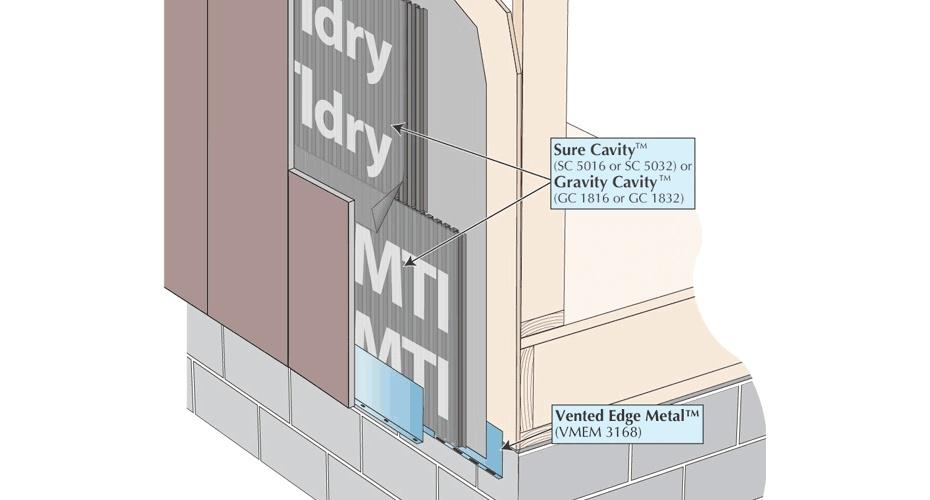

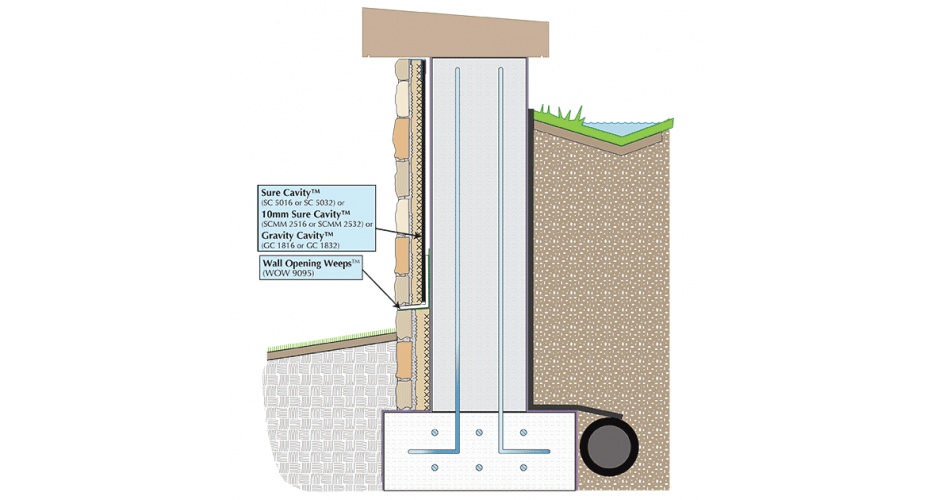

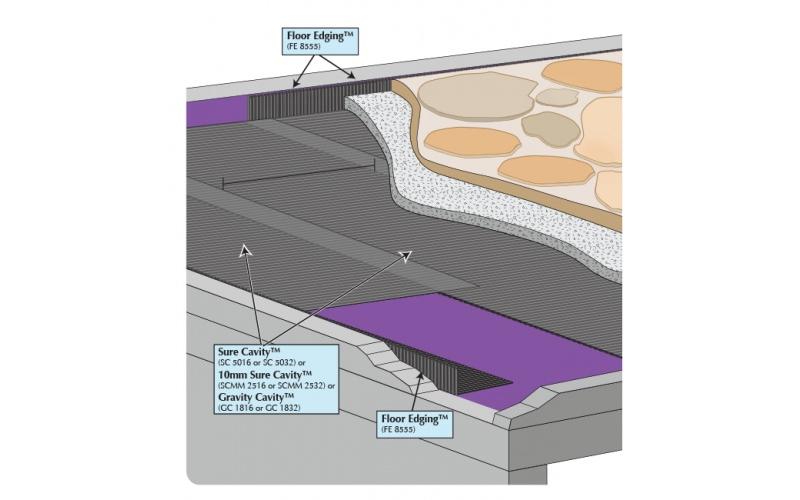

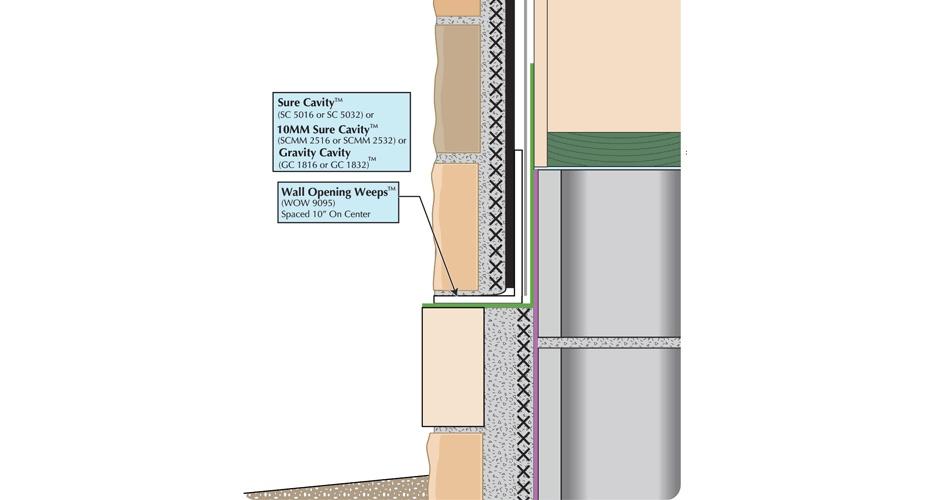

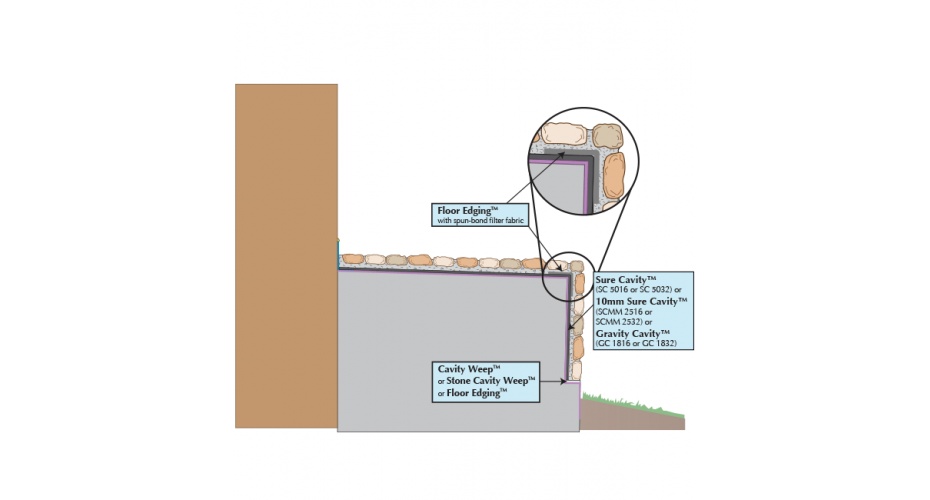

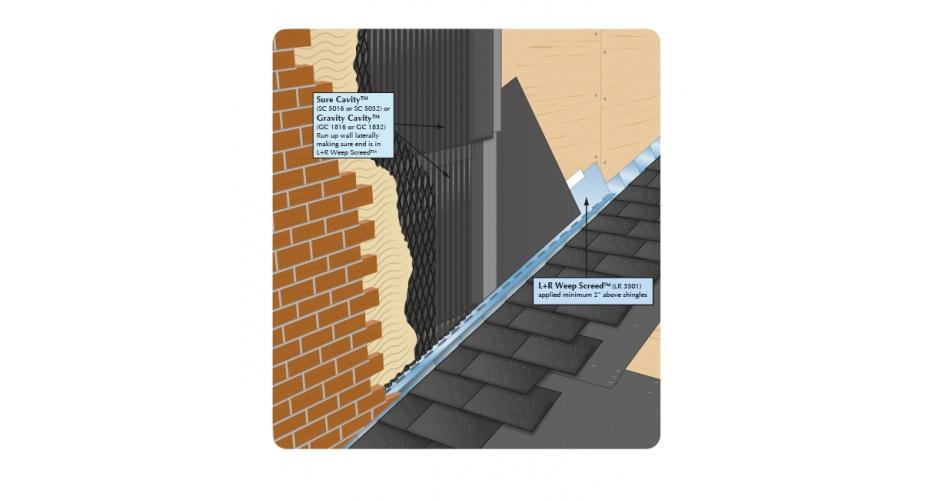

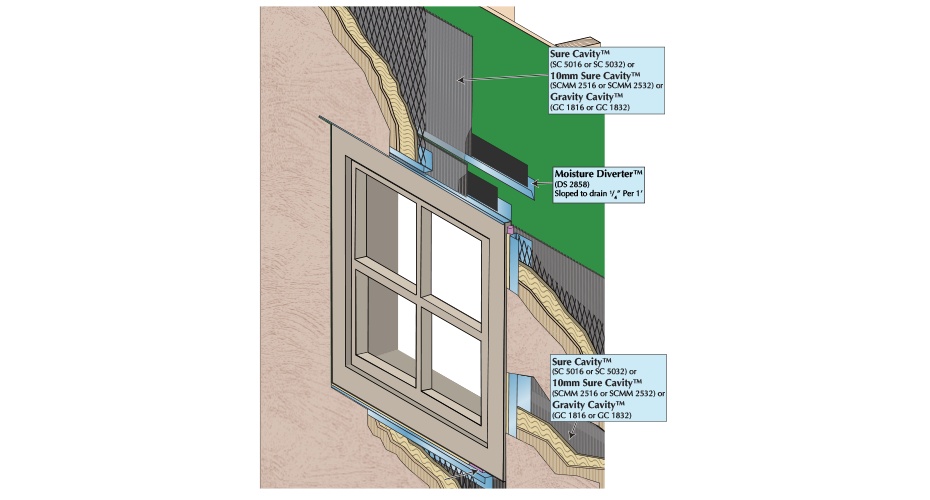

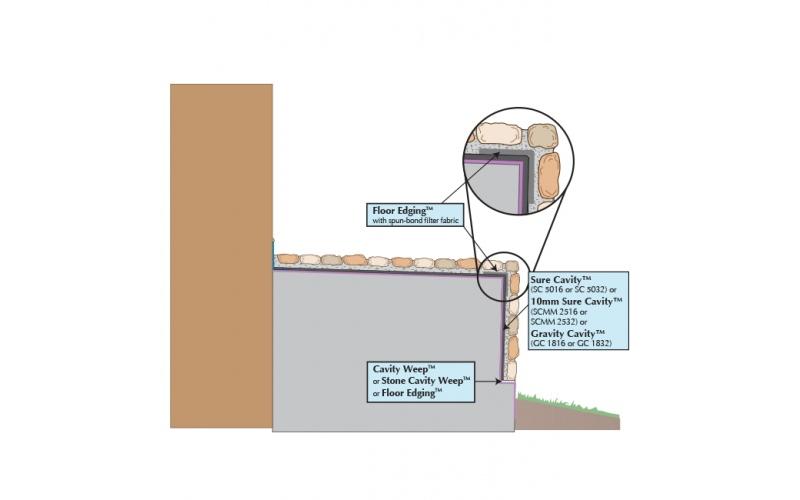

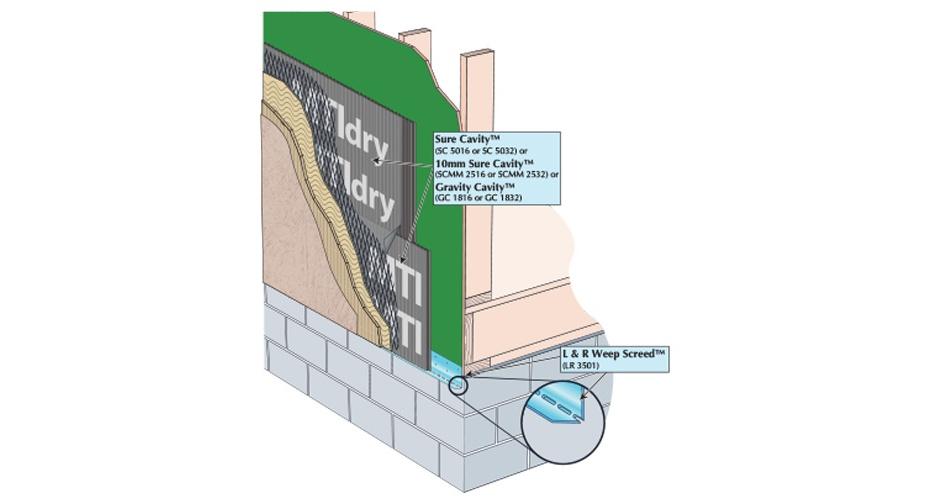

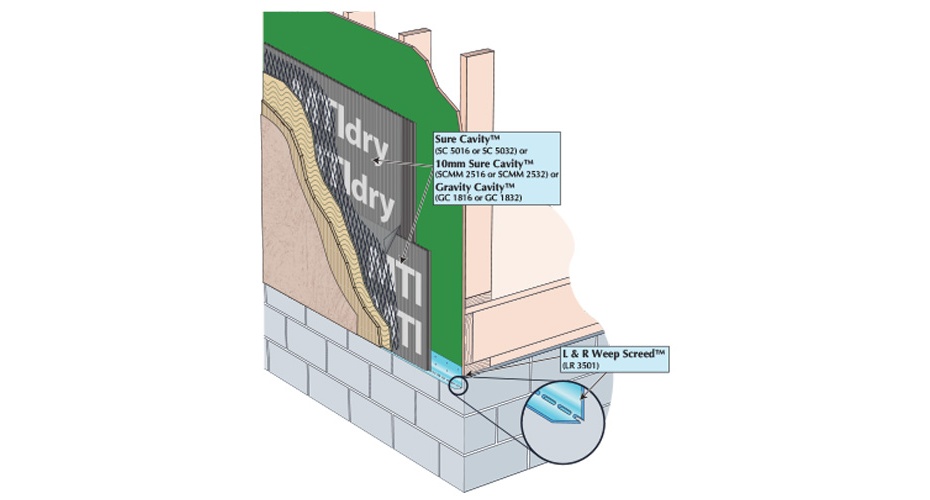

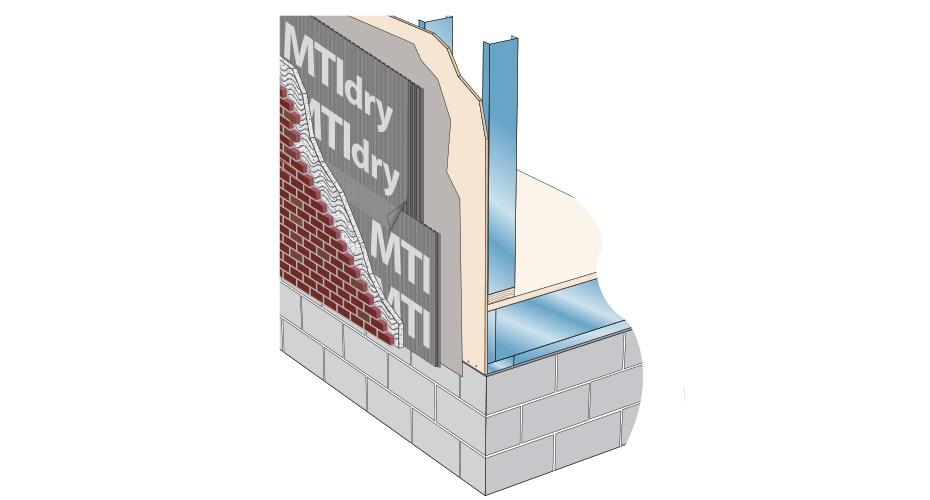

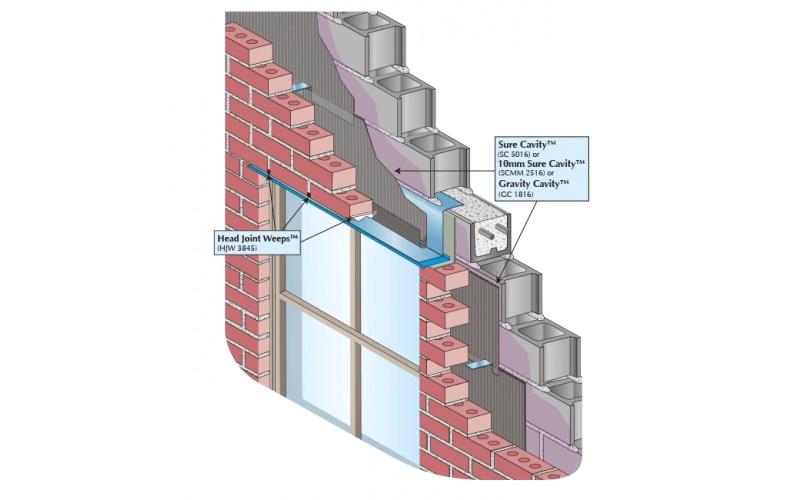

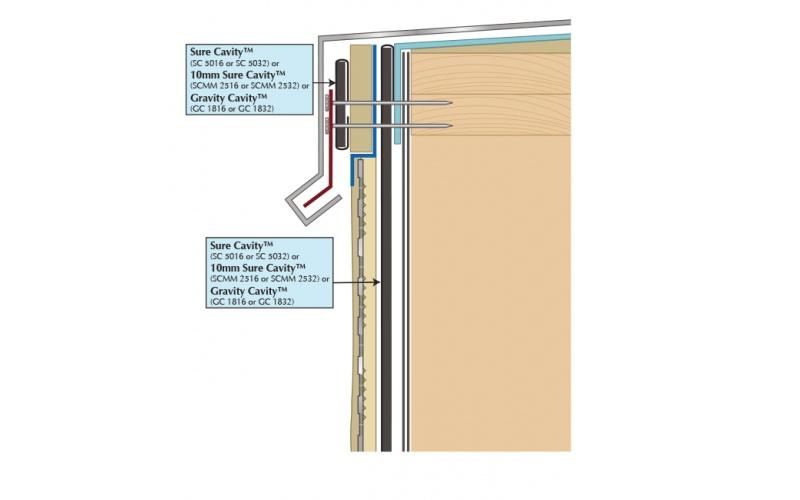

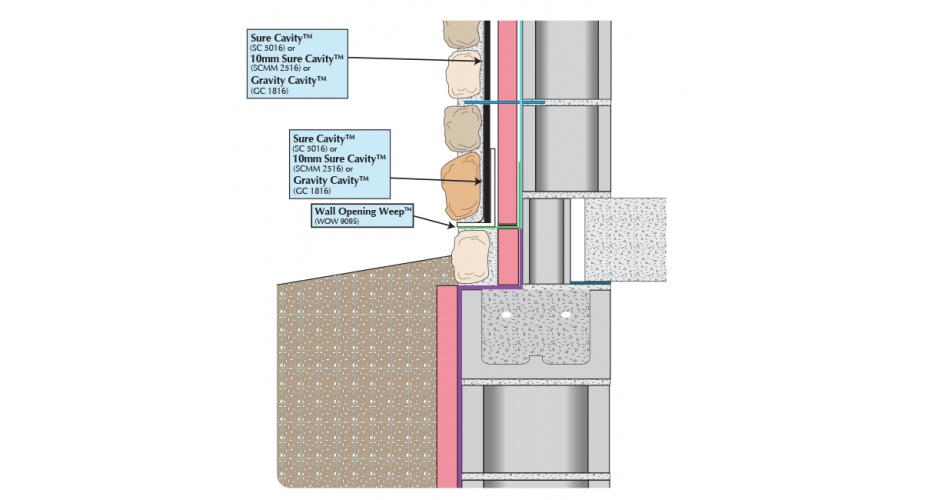

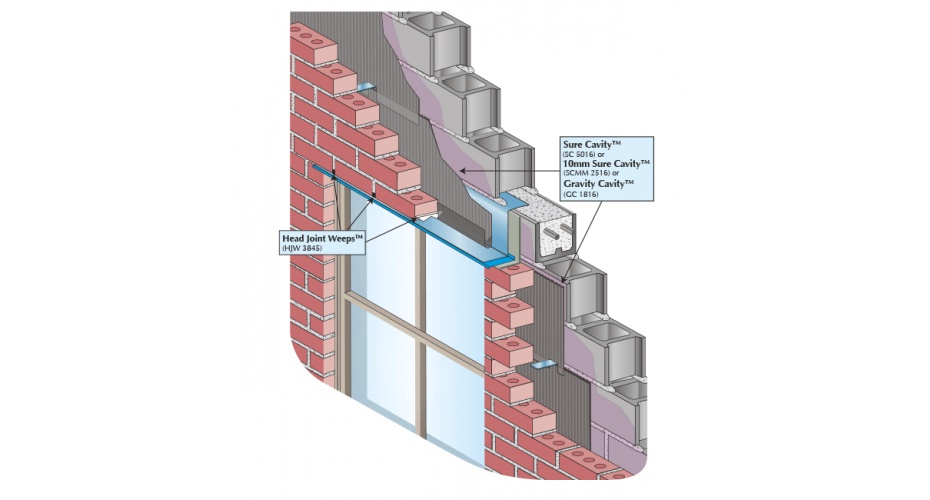

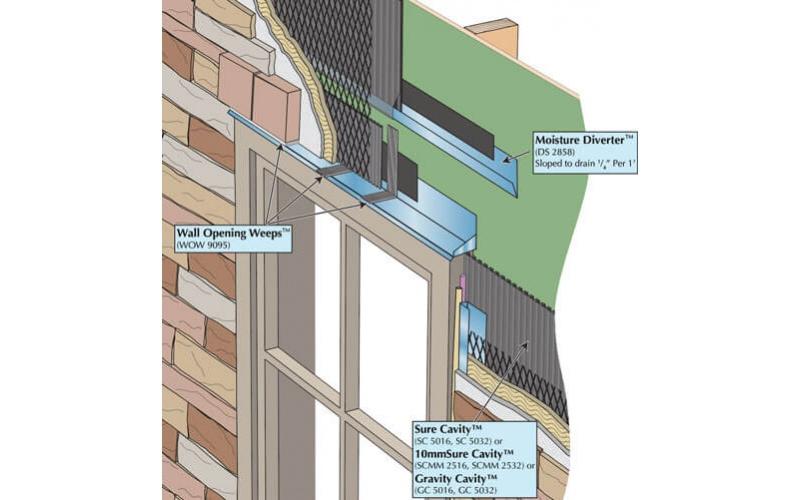

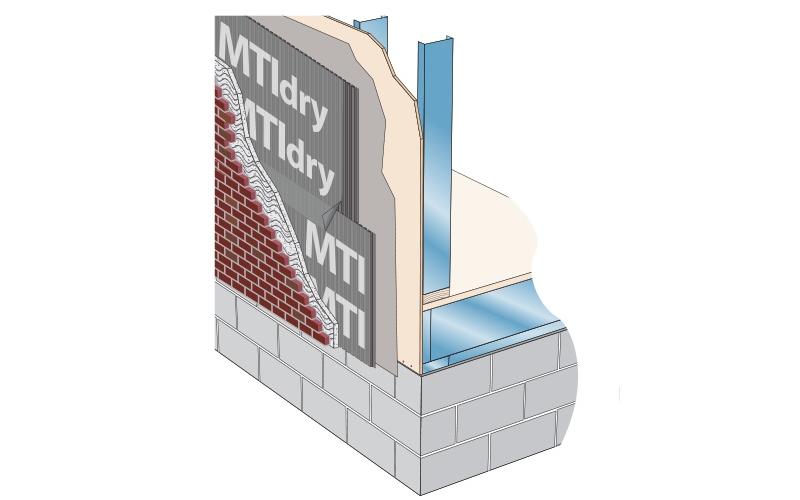

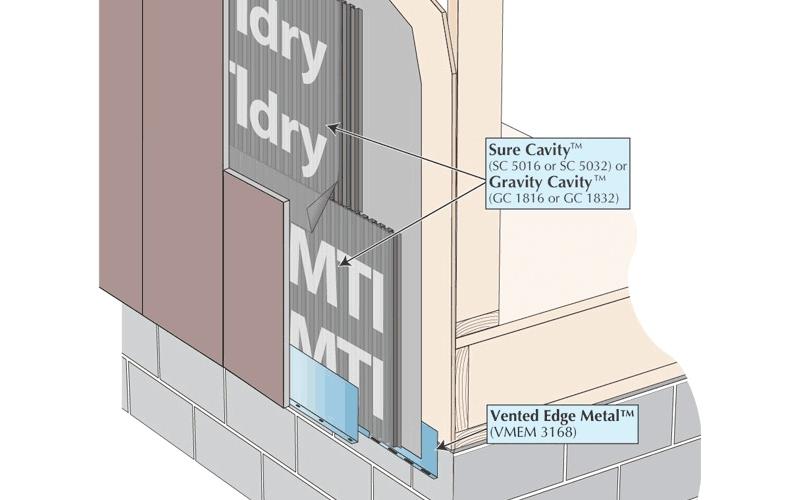

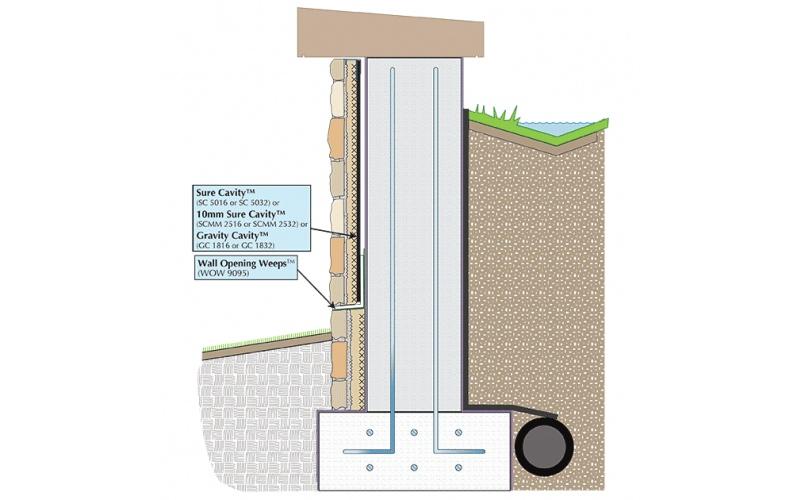

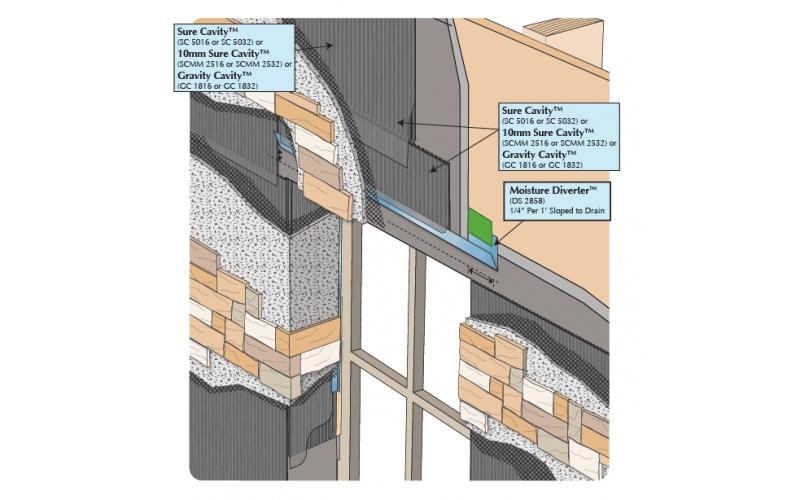

The Sure Cavity rainscreen drainage plane, an exceptionally efficient drainage mat, functions by establishing a clear space between veneer materials and the structural back-up wall. This gap is essential for evacuating any incidental moisture and assists in drying the building enclosure. Sure Cavity's distinctively engineered channels expedite the swift downward and outward movement of moisture infiltrating the building envelope, providing a more rapid drainage response than traditional drainage mesh matrix products.

Technical Information

Features & Benefits:

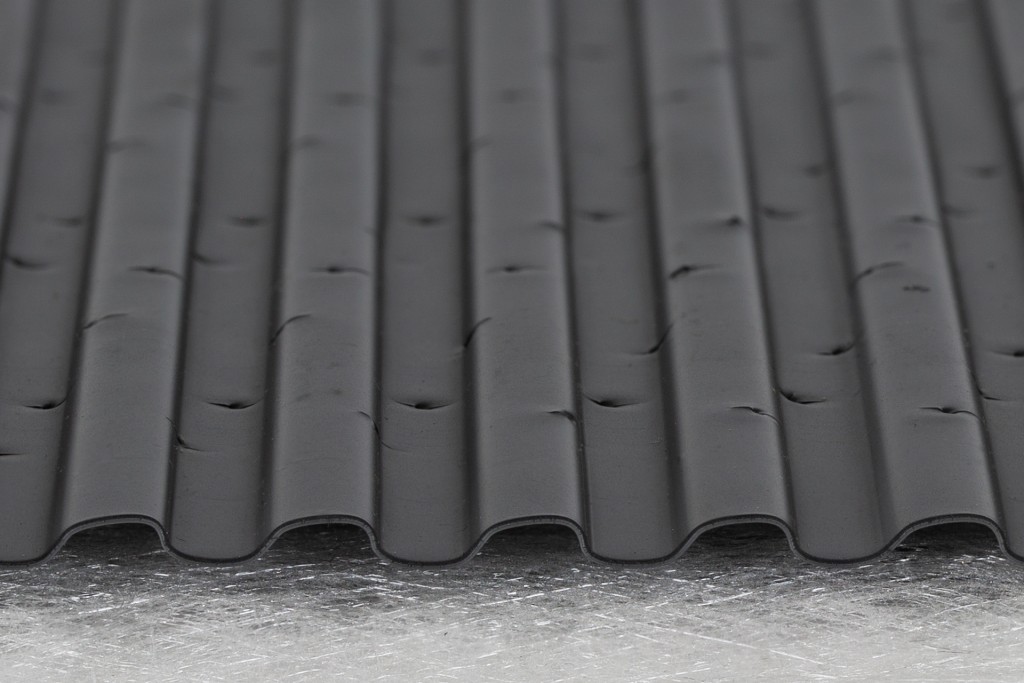

-Compartmentalized channels promote pressure equalization
-High impact polystyrene ensures durability and prevents compression, waviness, and nail drive-through experienced with fiber-based mesh drainage mat products
-Saves installation time (half the time of furring strips and backer board)
-96% post-consumer recycled content.

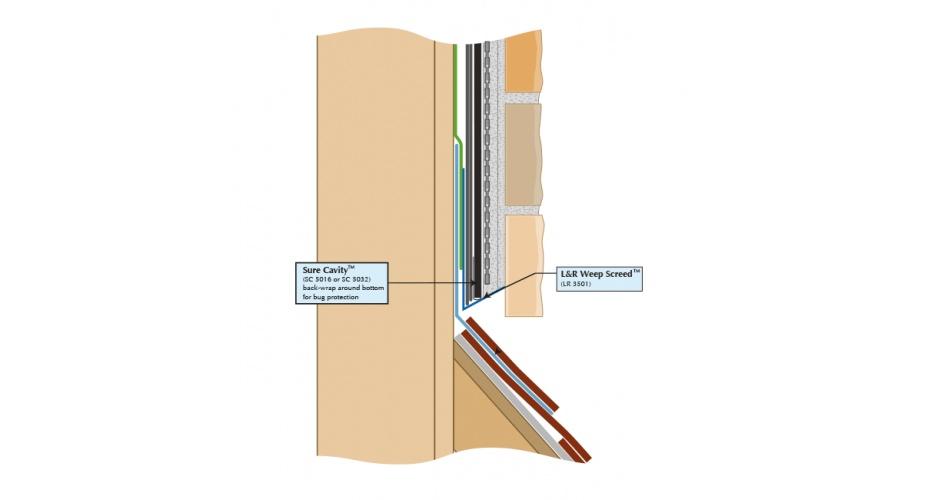

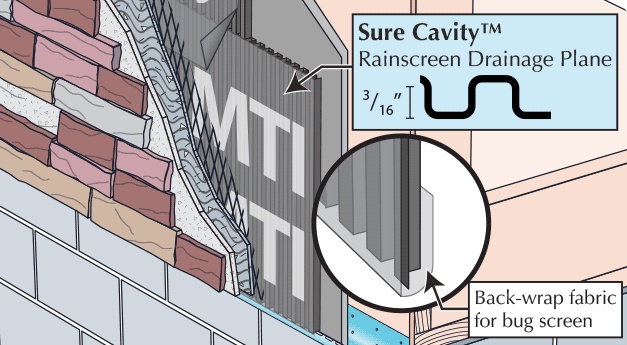

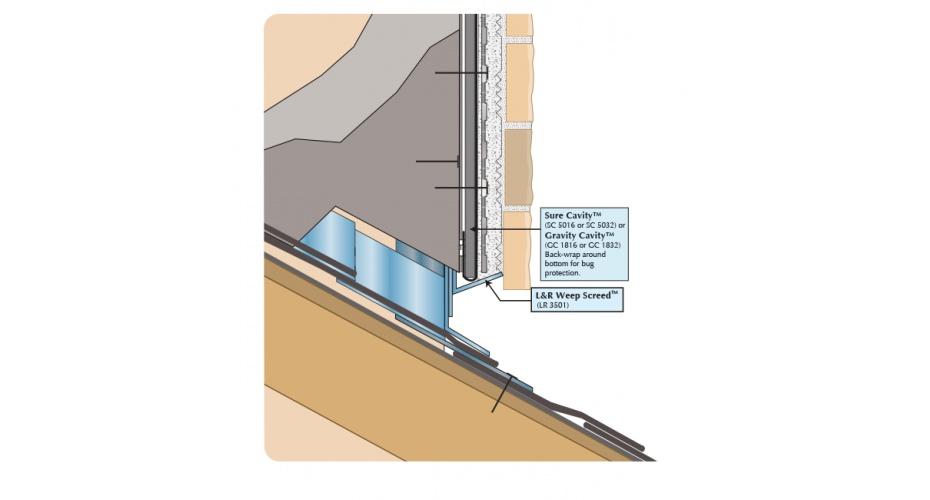

-The adhered fabric blocks mortar or stucco from filling the drainage channels and acts as a bug screen at the bottom
-Protection from Incidental Moisture behind

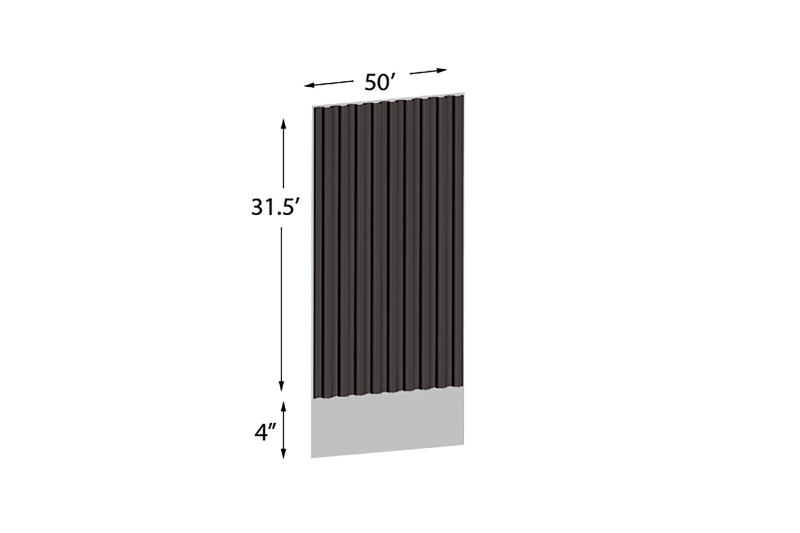

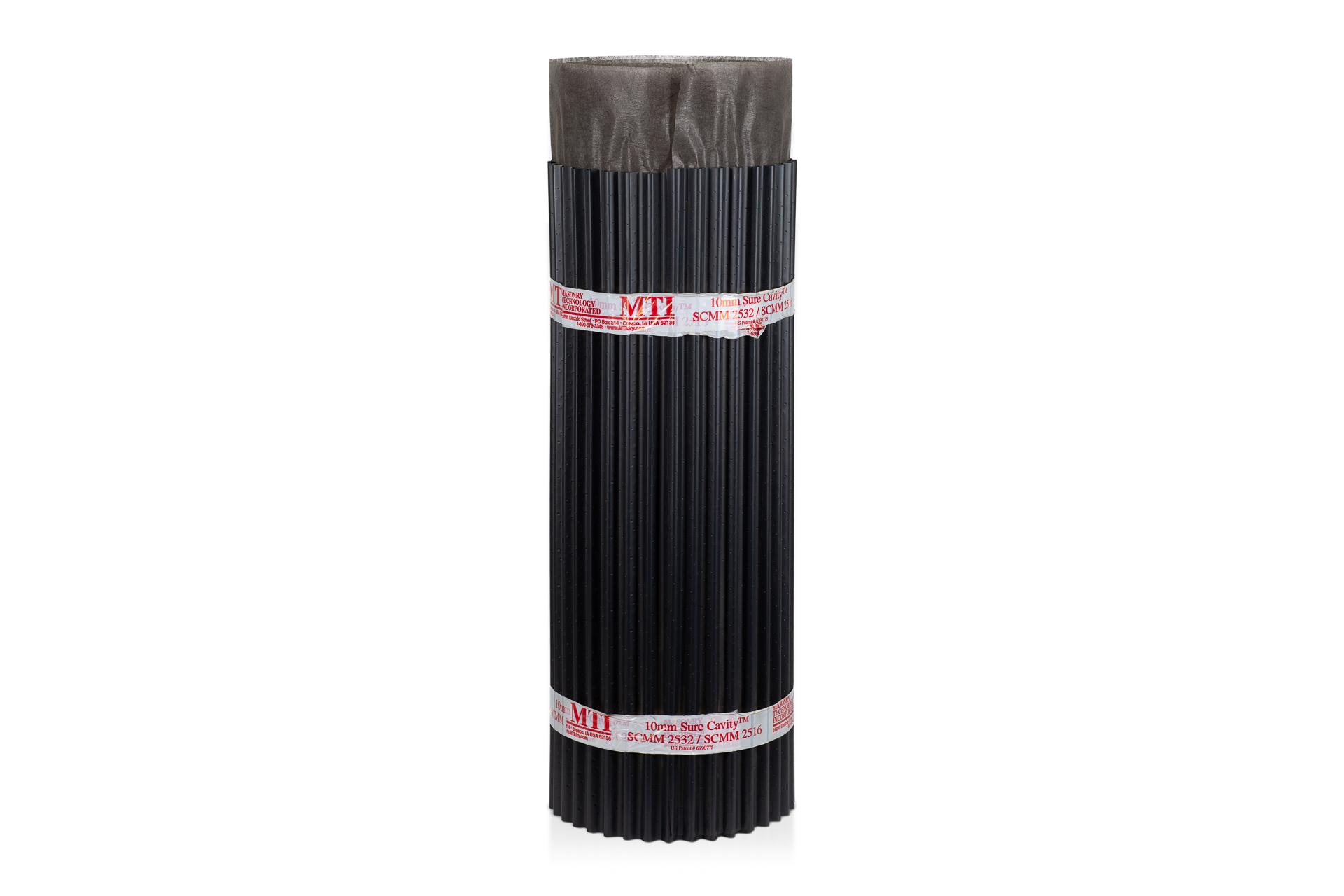

Square Feet per Roll	200	132	66
Roll Length (Feet)	76	50	25

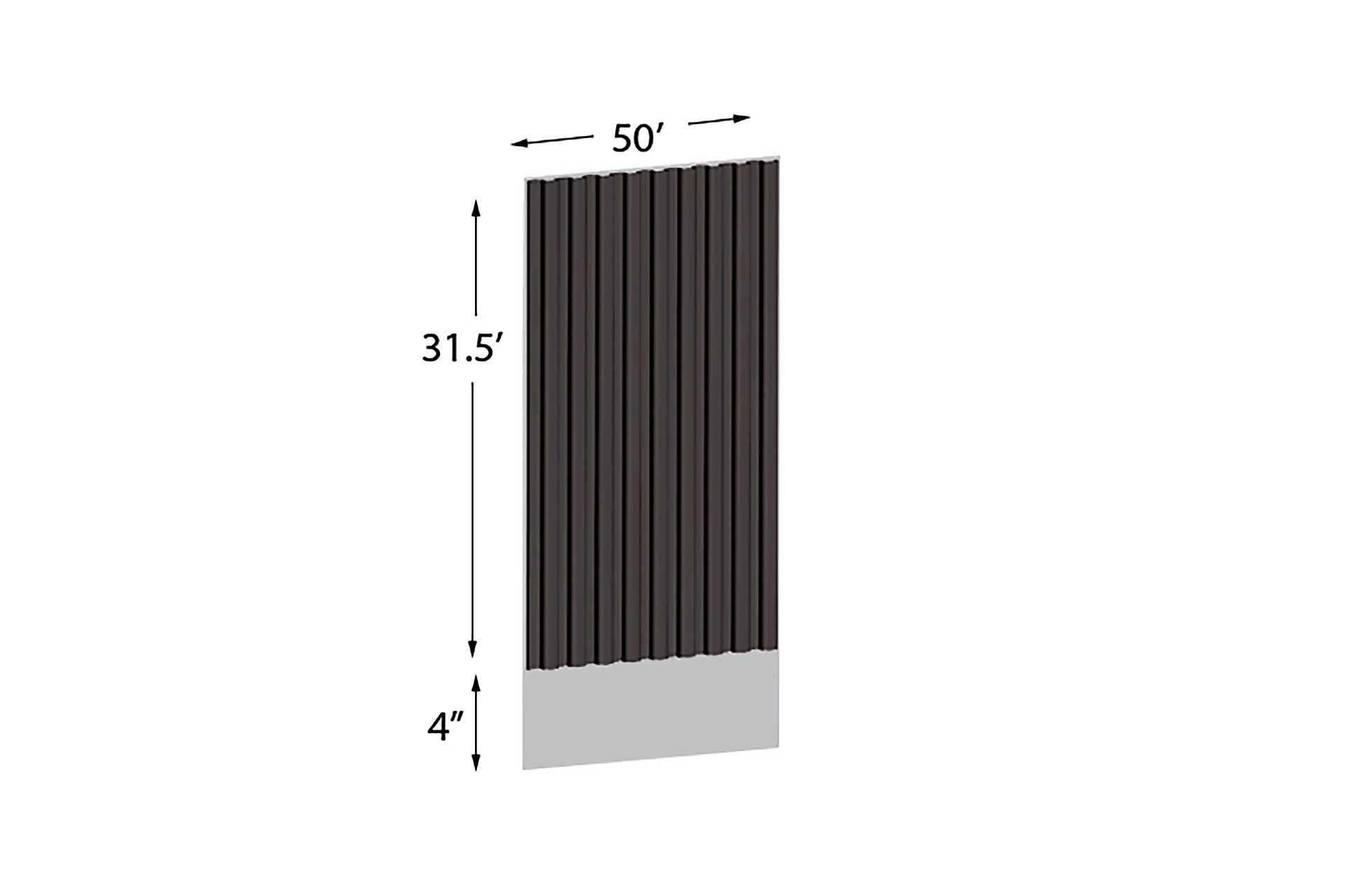

Roll Width (Inches)	31.5	31.5	31.5

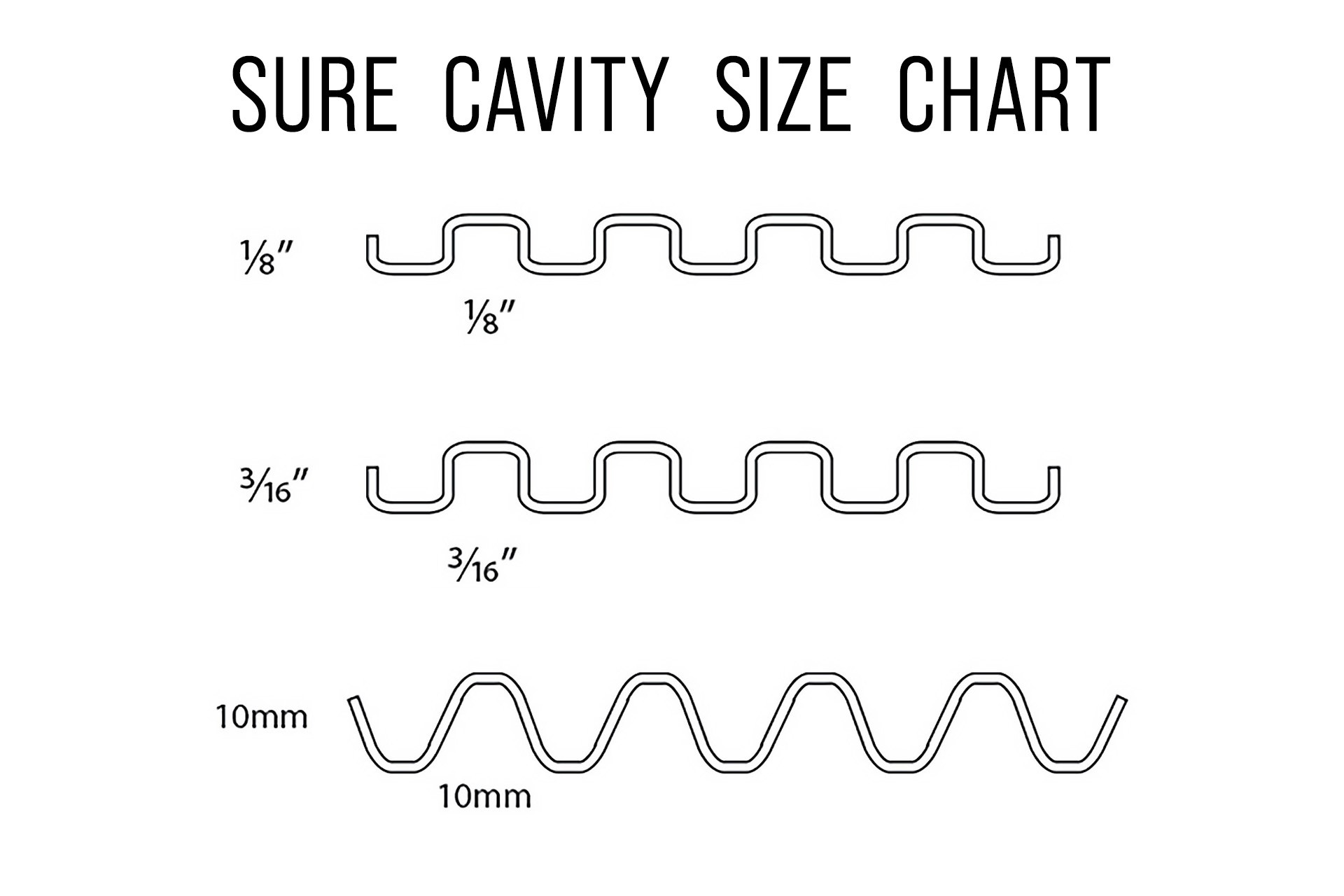

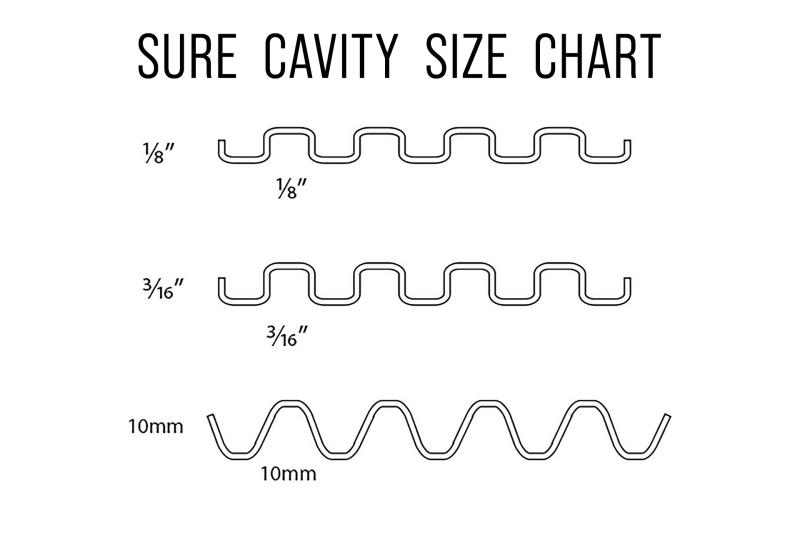

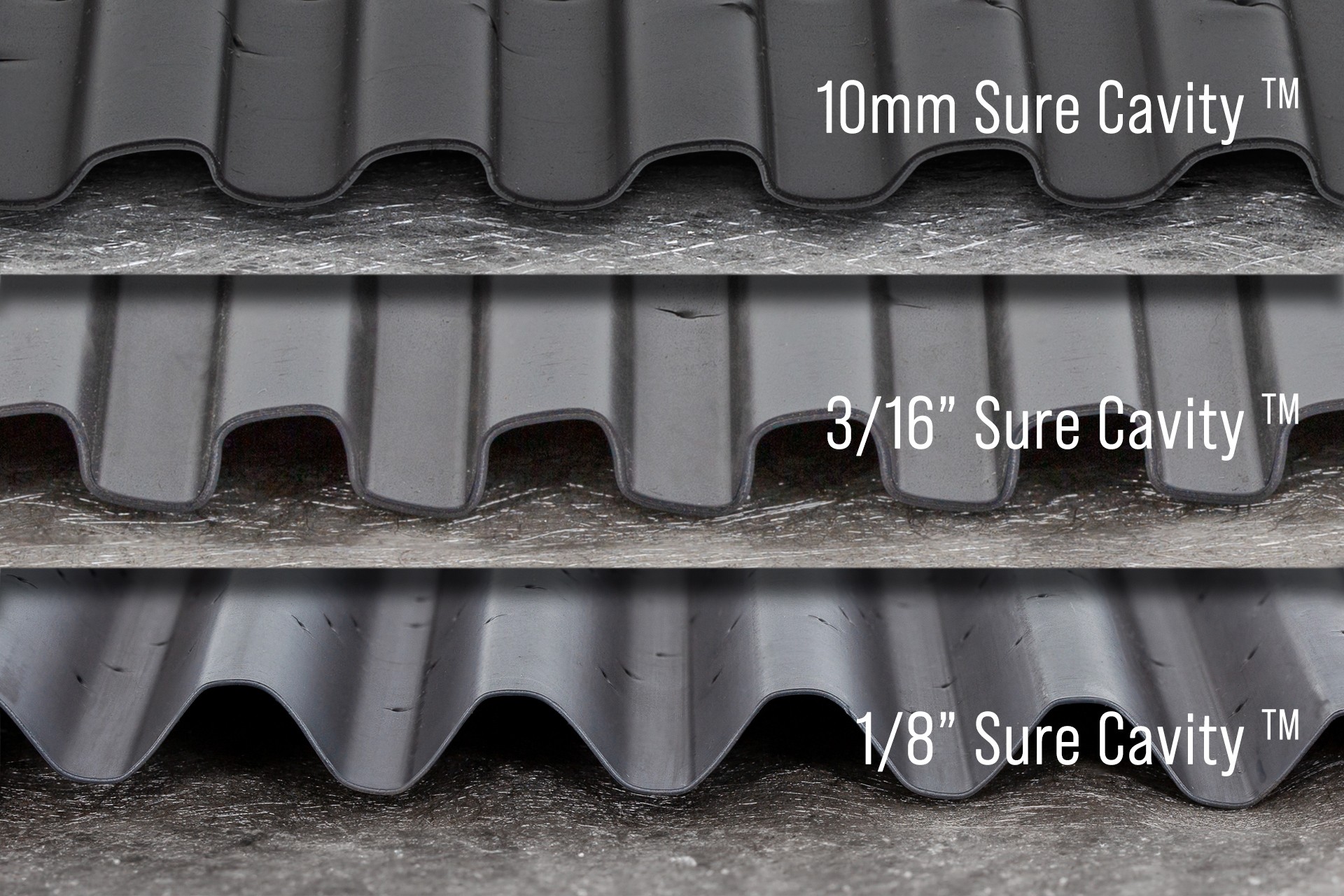

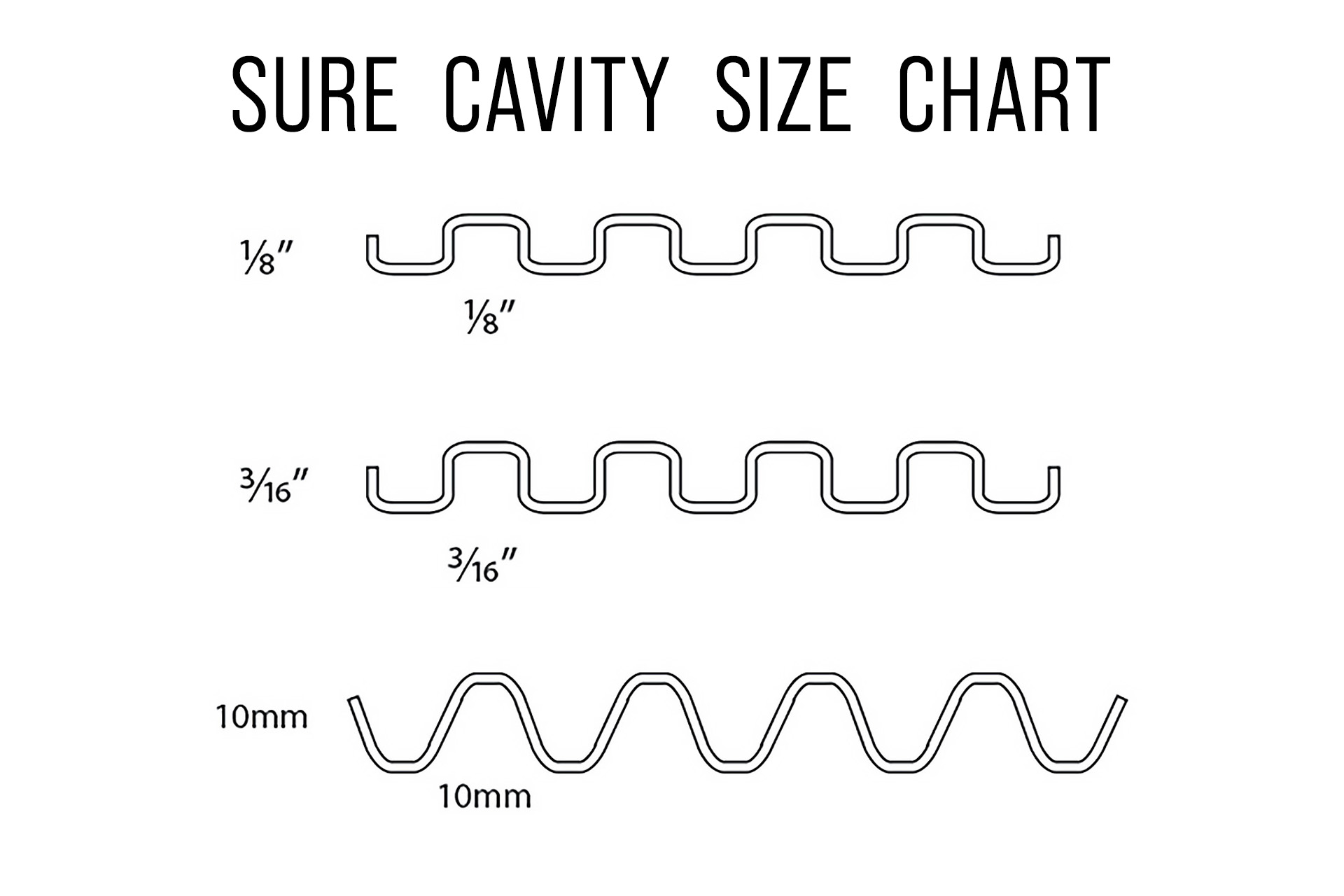

Channel Depth	1/8” / 3.25mm	3/16” / 5mm	3/8” / 10mm
Rolls per Box	N/A	N/A	N/A
Boxes per Pallet	N/A	N/A	N/A
Rolls per Pallet	32	32	32
Square Feet per Pallet	2112	2112	2112
