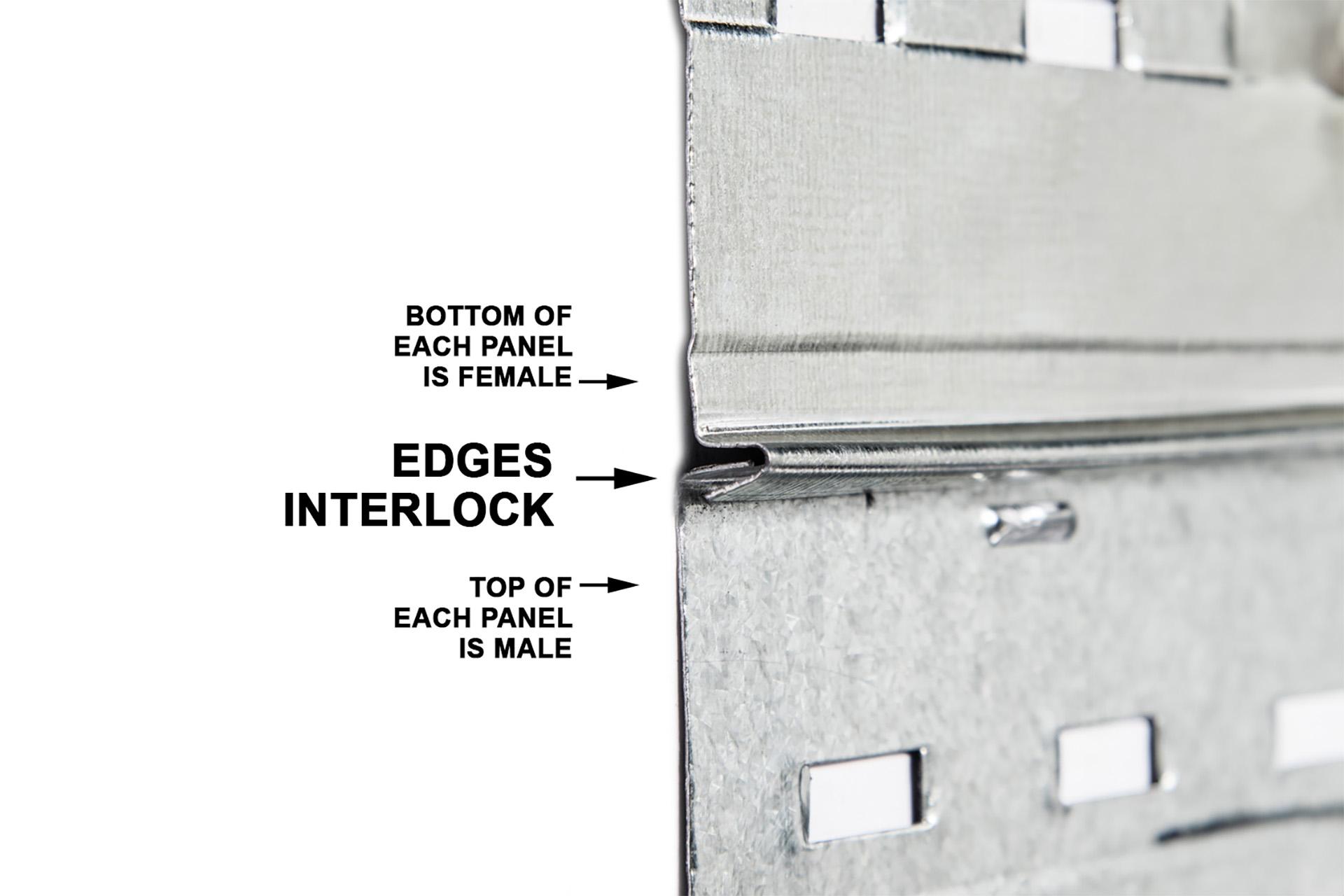

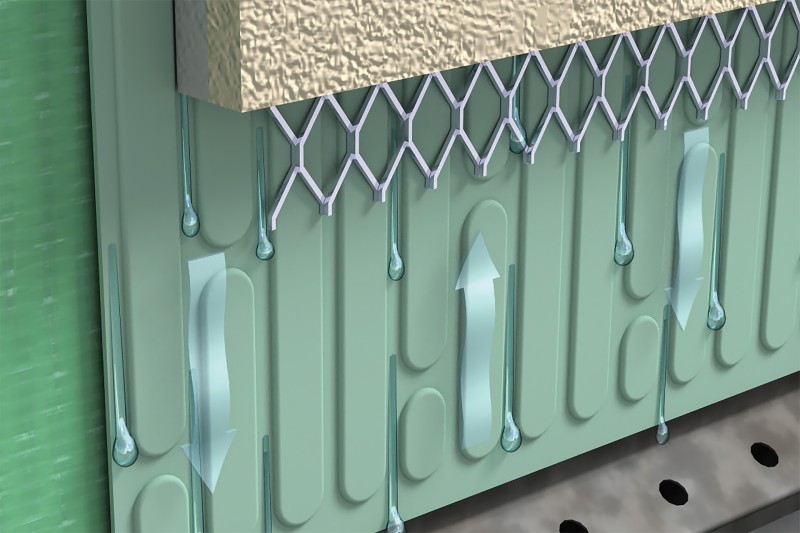

Allow simple, fast and efficient installation Create perfectly aligned brick veneer every time and, the interlocking feature and structural panel shape provides equal weight distribution of the bricks, reinforces the building corners and gives additional support to the wall itself. Keeps free air flow behind the brick Offset weep holes drain 100% of water every 8 inches. High impact mat provides rapid exit for water which is naturally absorbed by brick Compartmentalized channels promote pressure equalization

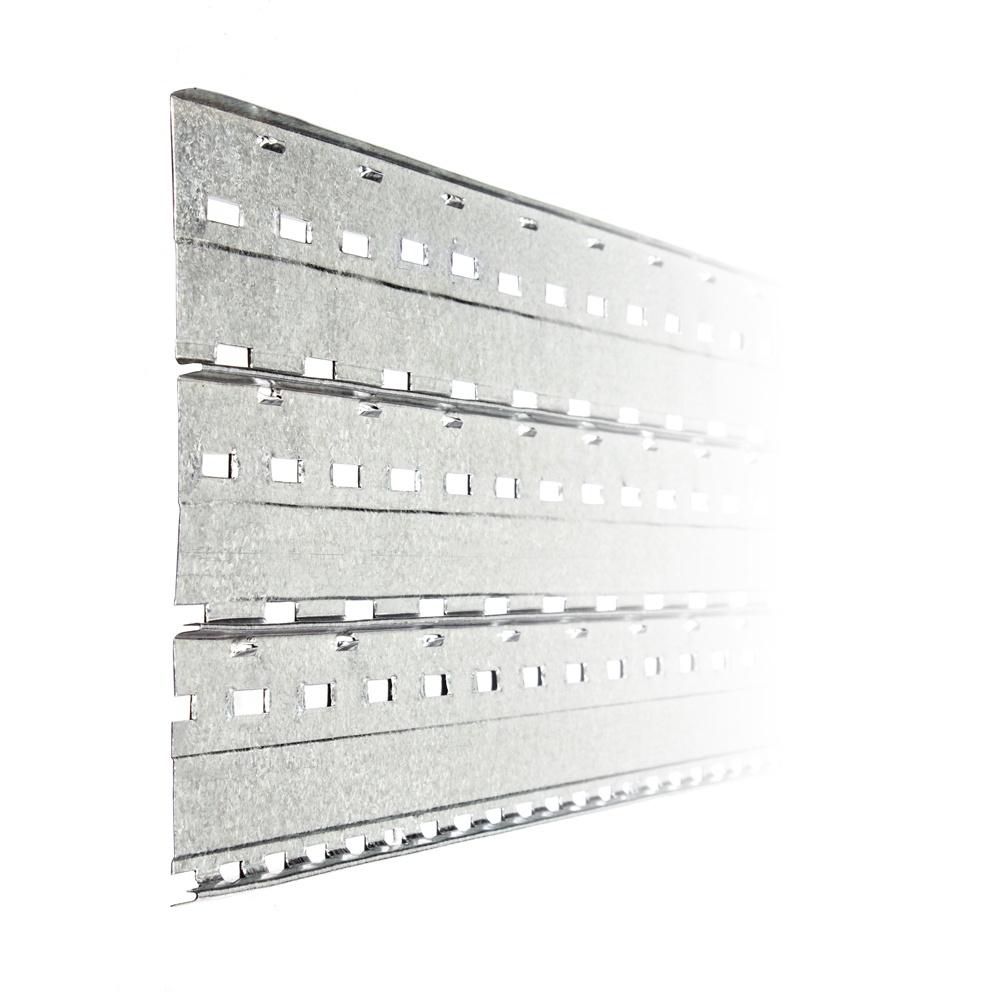

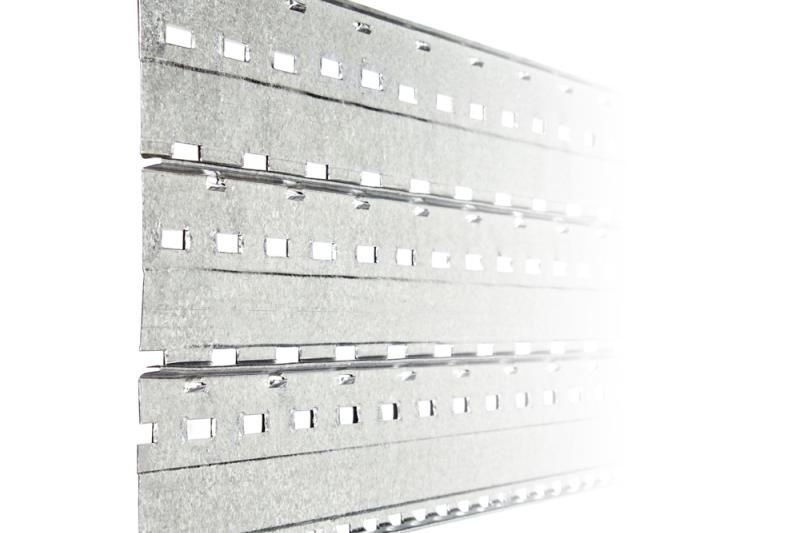

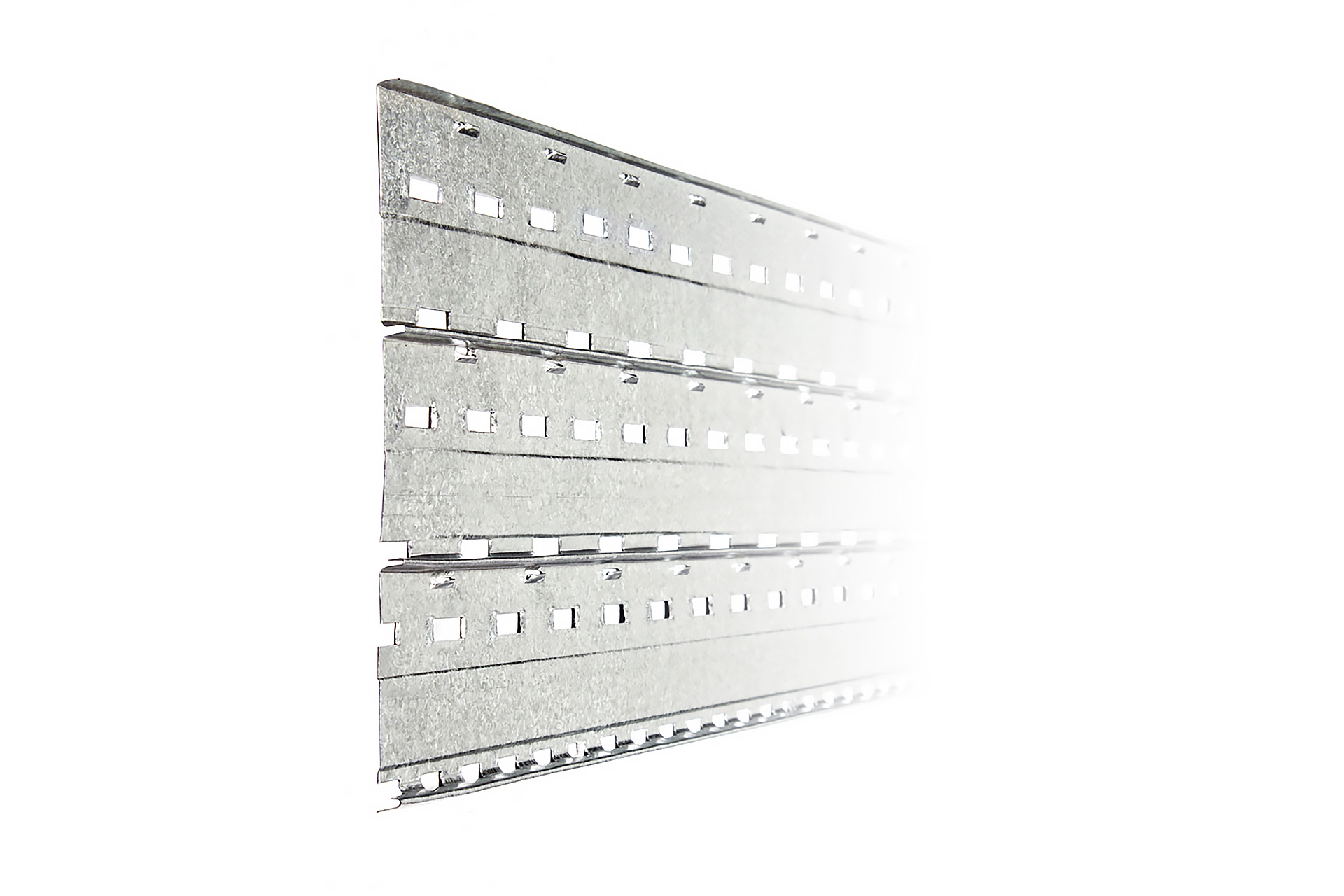

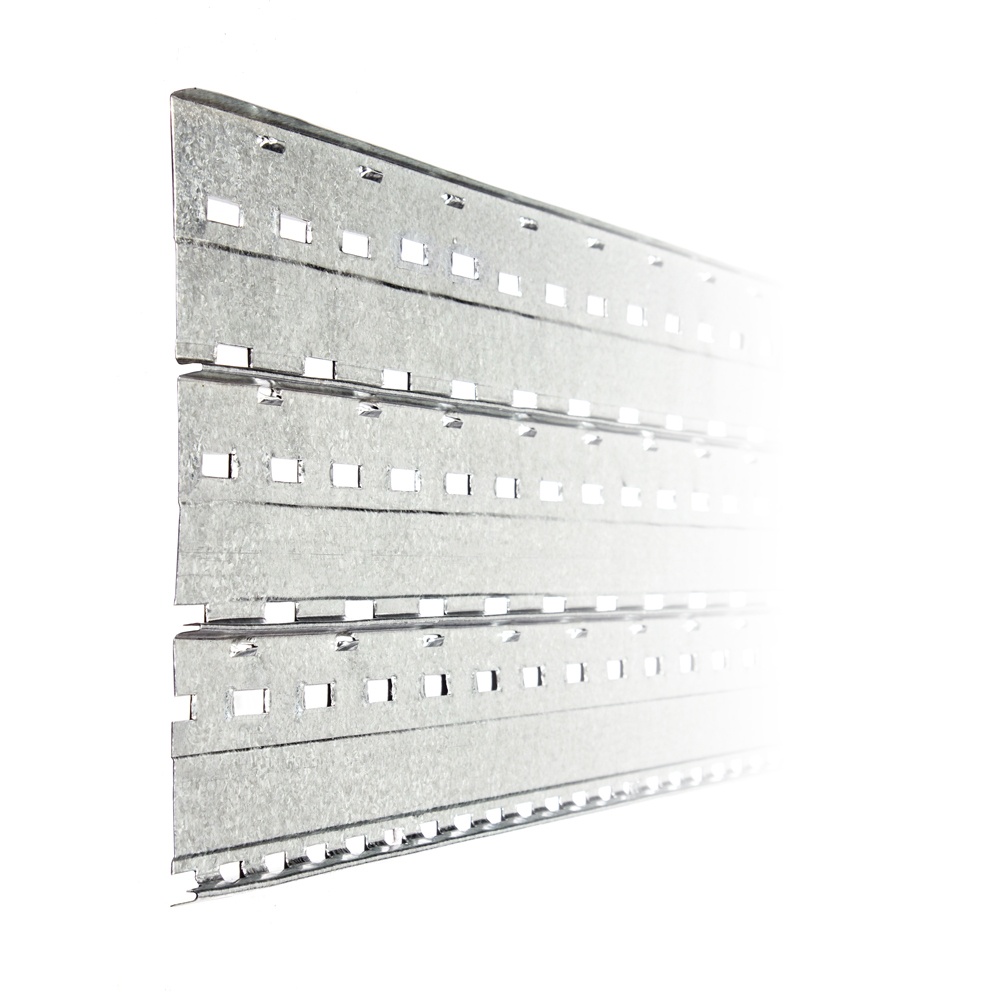

Metal Grid Panels Accommodates:
Brick Face Height - 2¼” (MOD, STA, NOR, SAX), Panel Height 8” x 48” Long, Covers 2.66 sq ft
Brick Face Height - 2½” (Cultured Brick & Modified Standard), Panel Height 9” x 48” Long, Covers 3.00 sq ft
Brick Face Height - 2⅝ & 2 ¾ (MST, MNR, QUE, KIN, EMD, EST, HMO, KGS), Panel Height 9.6” x 48” Long, Covers 3.2 sq ft
Brick Face Height - 3⅝ (CLO, UTI, TIT, SQU, DUT), Panel Height 12” x 48” Long, Covers 4 sq ft
System Meets ASTM Requirements:

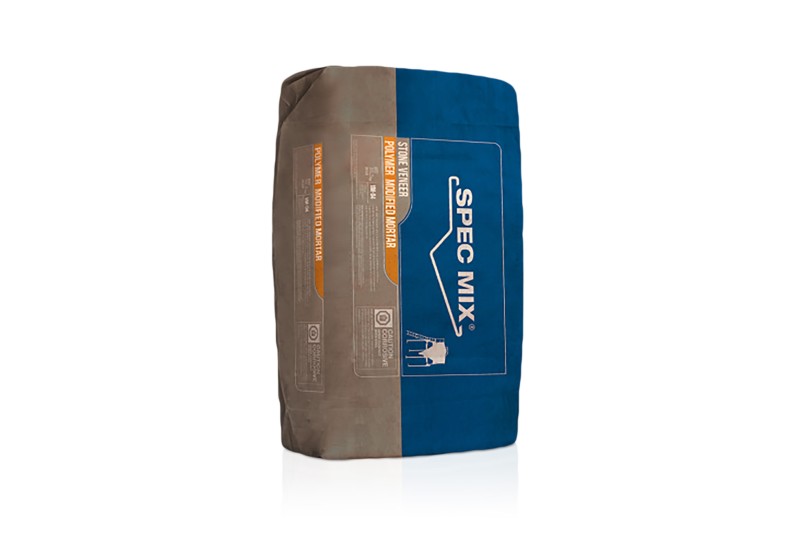

- ASTM C 270 - Standard Specification for Mortar for Unit Masonry; specially formulated mortar mix.
- ASTM C 513 - Standard Test Method for Obtaining and Testing Specimens of Hardened Lightweight Insulating Concrete for Compressive Strength; for bricks, minimum compression strength of 1000 PSI.
- ASTM C 577 - Standard Specification for Adhesives.
- ASTM E 84 - Standard Test Method for Surface Burning Characteristics of Building Materials.
- ASTM E 754 - Standard Test Method for Pullout Resistance of Ties and Anchors Embedded in Masonry Mortar Joints.
