Drainage Mat DC14

$87.93

Overview

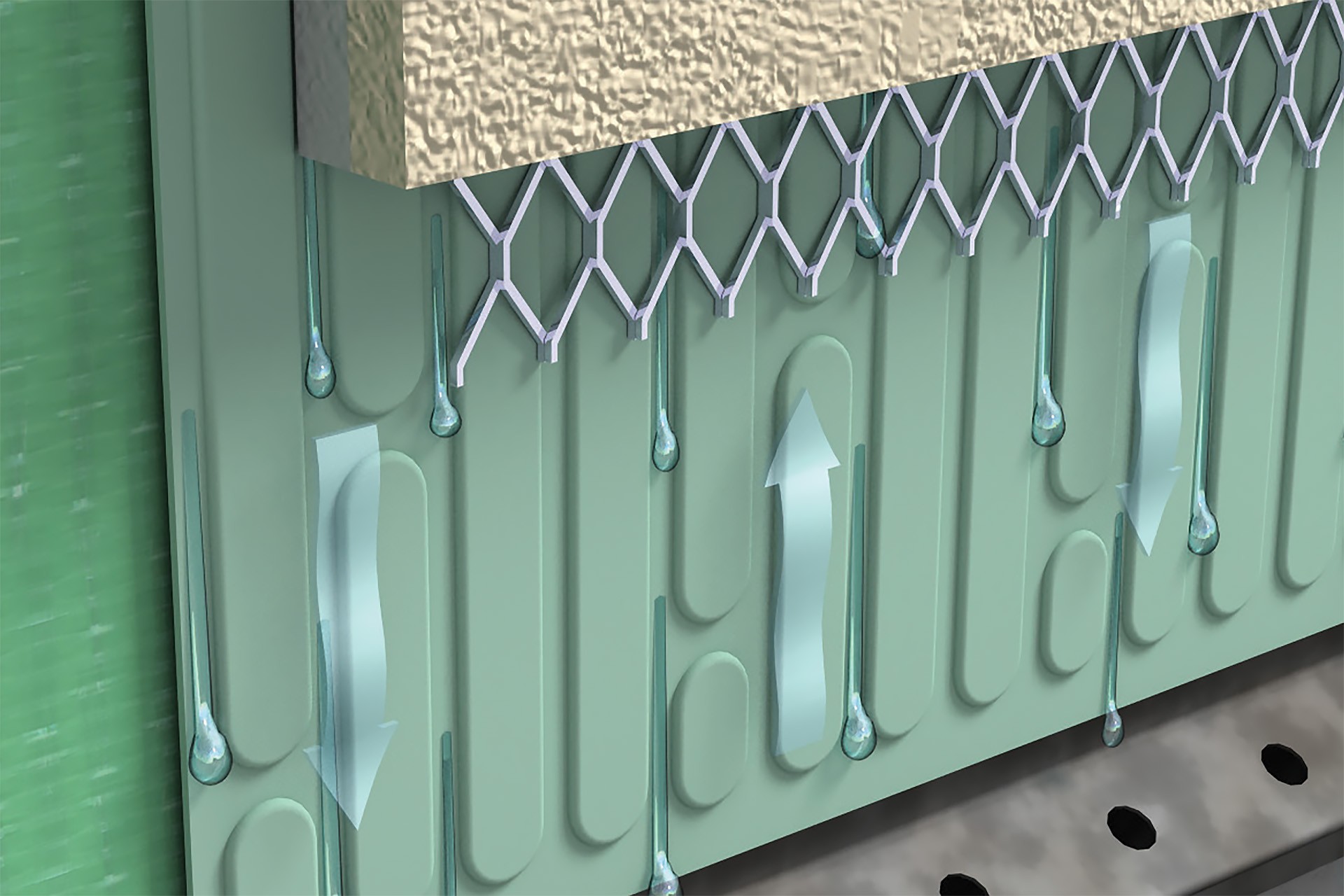

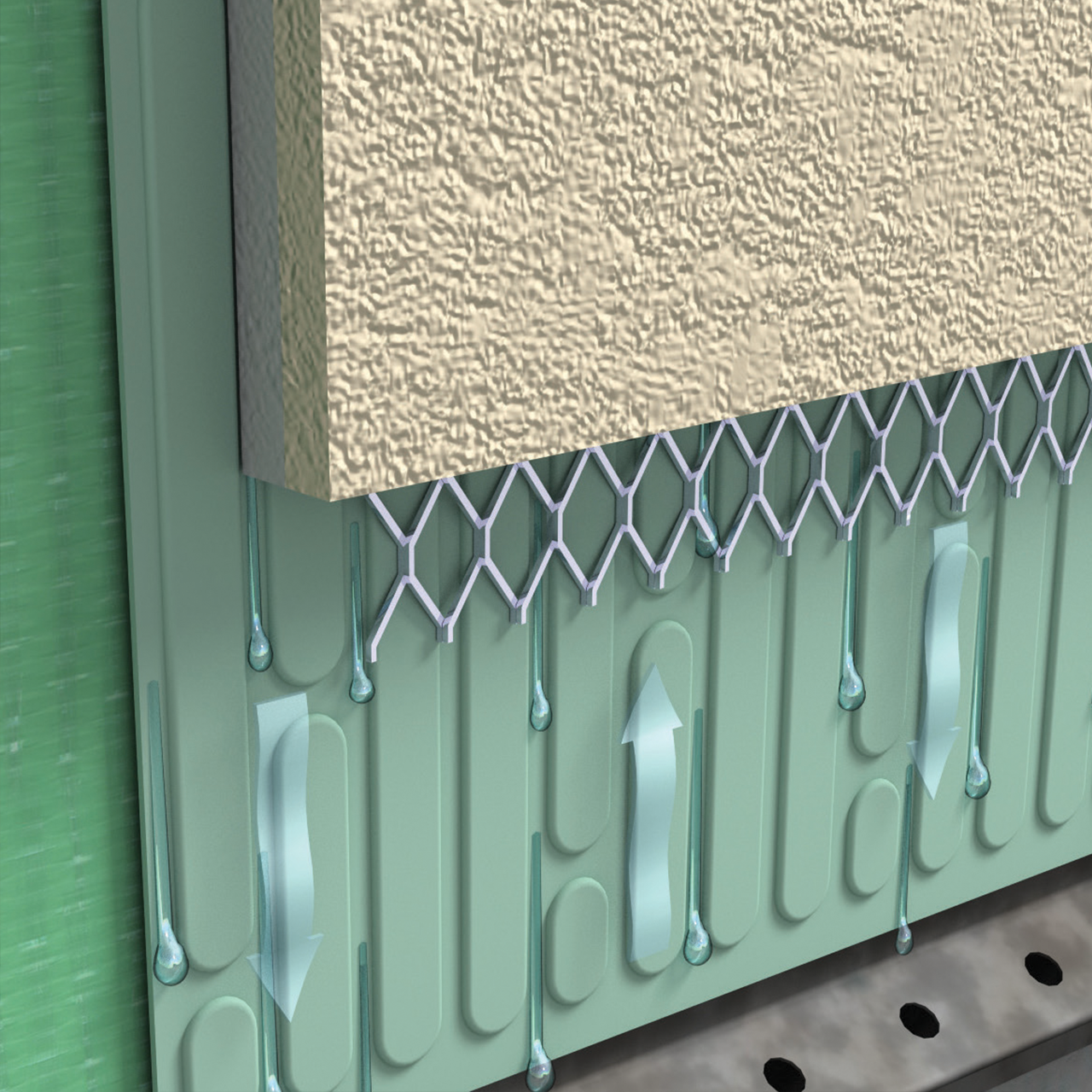

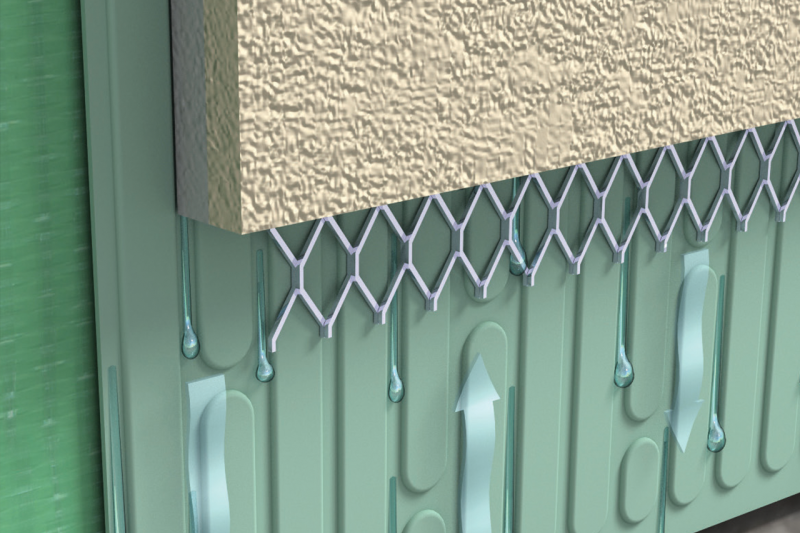

The DC14 Drainage Mat, based on rain screen principles, provides ample space for drainage and drying between exterior wall cladding and wall sheathing. Featuring drainage channels on both sides, it enables efficient water drainage and air circulation between the cladding and sheathing, aiding in keeping the wall dry. This makes it perfect for use behind closely attached exterior claddings like traditional stucco, stone, thin brick veneer, and siding. Constructed from extruded polystyrene (XPS), DC14 doesn't absorb moisture and resists mold growth.

Technical Information

● Provides for drainage
● Allows air movement for drying

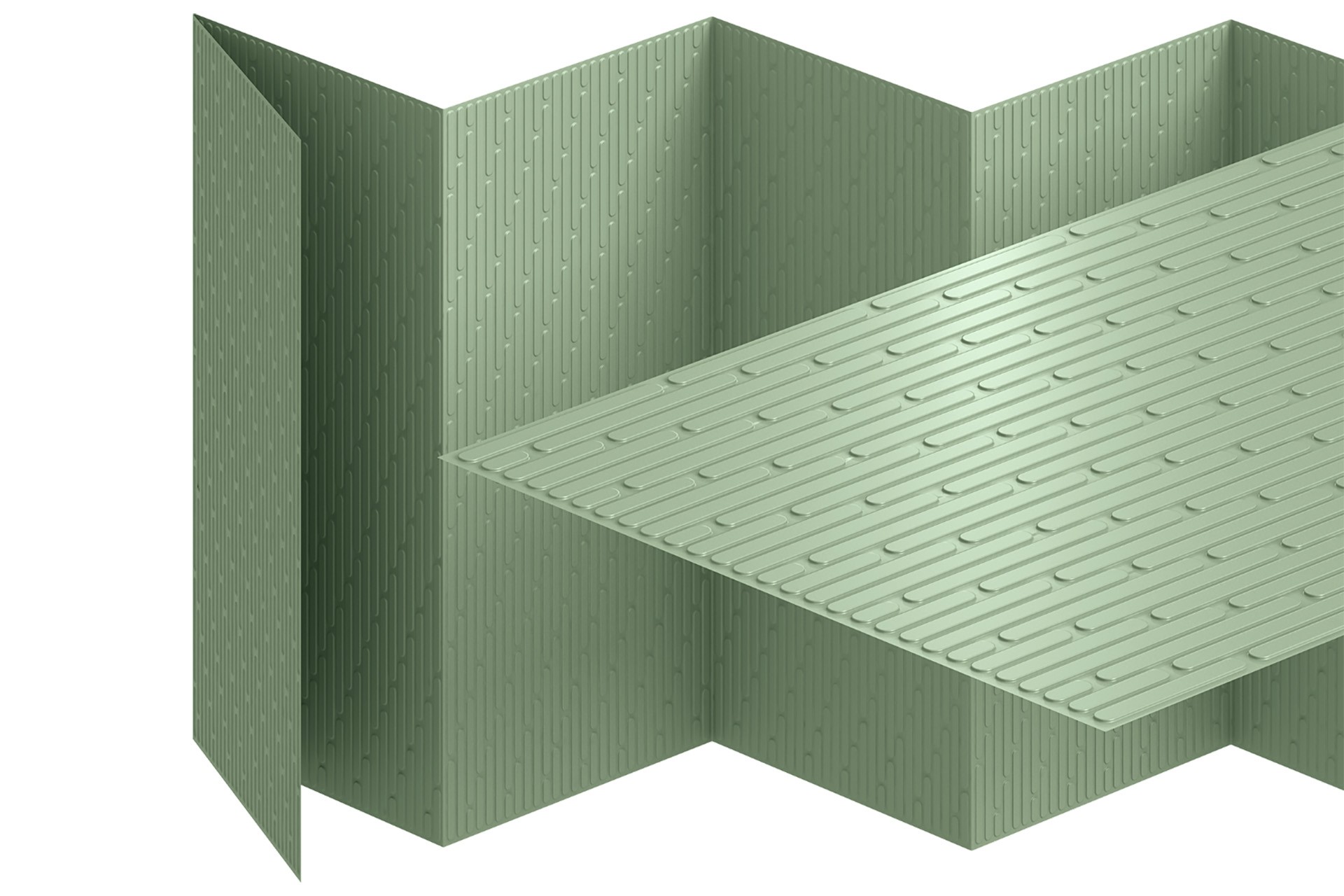

● Drainage channels on both sides
● Lightweight
● Easy to handle and cut
● Compatible with stucco, stone, fiber cement, wood and vinyl claddings
● Does not absorb moisture
● Virtually unrestricted drainage and drying

Product Data Property Test Method Value General Nominal Thickness (in) 1/4 Nominal Bundle Dimensions (ft) 4 x 48 fanfold Water Vapor Permeance (perm) ASTM E 96 (Desiccant Method) 1.1 Water Absorption, Max. (% by volume) ASTM C 272 0.2 Drainage Efficiency3 (% water drained) ASTM E 2273 93.0% Weight (lb/1000 ft2 ) 54 Recommended Service Temp., Max. (˚F) 165 Thermal Thermal Resistance, R–value1 ( o F.ft2.hr/Btu) ASTM C 518 (@75o F Mean Temperature) 1.0 Fire & Smoke Flame Spread2 Smoke Developed2 ASTM E 84 / UL723 25 (Class A) 250

Typical Physical Properties
Property	Test Method	DC14 Drainage Mat
Thermal Resistance, R-value1 (°F.ft².hr / Btu per in thick)	ASTM C 518(@75°F Mean Temperature)	1.0
Weight(lbs./1,000 ft.²)		50
Water Vapor Permeance(perm)	ASTM E 96 (Procedure A)	1.1
Water Absorption(Max % by Volume)	ASTM C 272	0.2
Fire Characteristics2Flame Spread Smoke Developed 2 These numerical flame spread and smoke ratings are not intended to reflect hazards presented by these materials under actual fire conditions (foam only). See UL Classification Certificate A184. 3 DC14 Drainage Mat was evaluated in accordance with the ICC-ES Acceptance Criteria for Foam Plastic Sheathing Panels Used as Water-Resistive Barriers (AC71). The product was installed over wood sheathing as an alternative to building paper or housewrap. All horizontal and vertical seams were sealed with GreenGuard ® Contractor Tape and the interface between the window frame and the DC14 was sealed using GreenGuard ® Self-Adhering Flashing. All other wall penetrations were sealed using either spray foam, caulk, adhesive tape or self-adhering flashing membrane. Refer to ICC-ES Evaluation Report No. ESR-2136 for details regarding the use of other GreenGuard Fanfold Underlayments as water-resistive barriers. 4 These dimensions apply to each fanfolded bundle	ASTM E 84/UL 723	25250
Max, Recommended UseTemp. (°F)		165
Water Resistance/Wall Assembly3(2 hrs. @ 300 Pa/50 mph)	ASTM E 331	Pass
Dimensions / Packaging
Thickness (Nominal)	1/4”
Width4 (inches)	48”
Length4 (ft.)	48’
Bundles/Pallet	45
Square Feet/Bundle	192
Square Feet/Pallet	8,640
